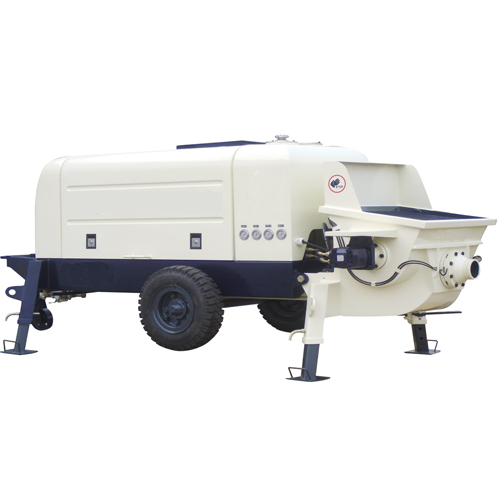

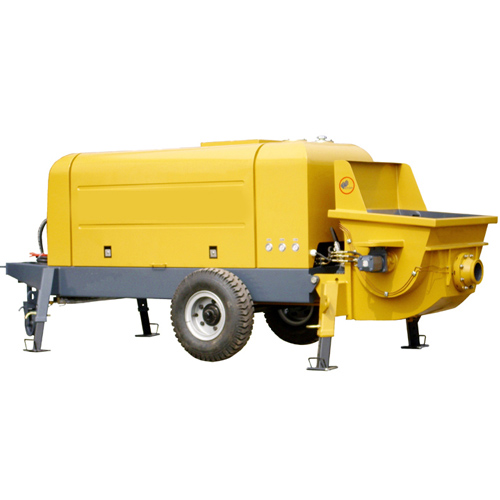

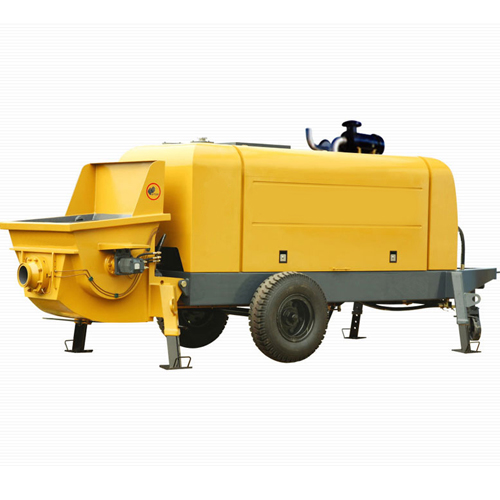

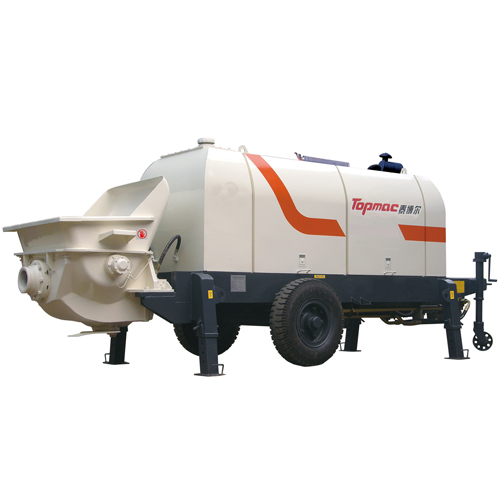

Trailer Mounted Concrete Pump

Description

The trailer mounted concrete pump is controlled by programmable logic controller and man-machine interface. All these buttons and switches are used to input different operation signals. The programmable controller ensures the performance and reliability of the electricity control system. Except for setting up the system parameters, the man-machine interface of trailer mounted concrete pump also has the function of fault diagnosis through indicator light on the screen, so that it will be easier for debugging.

Advantages of Trailer Mounted Concrete Pump

1. Automatic lubrication system ensures long successive running of the pump.
2. High-quality parts and spare parts electronic list makes the selection accurate and fast.
3. Global purchase: select the parts of the international famous brands for the trailer mounted concrete pump.
4. The machine and key structure parts adopt three-dimensional design and finite-element analysis to obtain higher safety performance.
5. The inhalation efficiency of the trailer mounted concrete pump is 95%, which is 10% higher than the industrial average level and 15% higher than the national standard.
6. One-key switch between high pressure and low pressure allows switches at any time, featuring no leakage and no pollution.
7. The full two-way cartridge inserted valve reversing patent technique assisted with independent cooling system and filtration system reduces the oil temperature of the hydraulic system and the impact to the hydraulic system, and prolongs the service life of the construction pump.
8. Intelligent electronic control system and the technique of diesel engine speed governing automatically controlled by the computer are energy efficient and environmental friendly.
9. Topmac is an ISO 9001 accredited construction pump supplier in China.

Types of Trailer Mounted Concrete Pump

CP30/CP40D/CP60/CP80D

Typical of CP40D Specification

Overall Performance	Description	Unit	Parameters
	Max theoretical conveying capacity	m3/h	40/24
	Max theoretical conveying pressure	Mpa	10/6
	Distributing valve form		S-VALVE
	Concrete cylinder diameter× stroke mm specification: diameter × travel	mm	φ160×1000
	Hopper volume	m3	0.4
	Material outlet diameter	mm	φ125
	Material feeding height	mm	1150
Power System	Model of diesel engine		WP4G95E221
	Diesel engine power	kw	70
	Model of main oil pump		K3VG112
	Diameter of main oil cylinder× diameter×stroke	mm	φ110×φ70×1000
	Diameter of swing oil cylinder	mm	φ63
Hydraulic System	Hydraulic oil circuit type		Open circuit
	Oil pressure of pumping system(set valve of safely valve)	Mpa	20
	Oil pressure of distributing system(set valve of safely valve)	Mpa	13
	Oil pressure of mixing system(set valve of safely valve)	Mpa	11
Other Parameters	Diesel engine power of radiator	W	100
	Rotary speed fan	r/min	3000
	Allowable max. aggregate size	mm	Cobble40,Detritus30
	Inner diameter of concrete conveying tube	mm	φ80/φ100
	Overall dimension (L×W×H)	mm	4320×1800×2000
	Overall weigh	kg	3200
	Trailing speed	km/h	<8
