Mini Mobile Concrete Plant
Description
TOPMAC mini mobile concrete plants are the products of TOPMAC’s new generation point of view to the concrete batching plants. The main unit of TOPMAC mobile concrete batching plants has been designed to be transported by only 1 unit truck trailer and all the units have been placed on 1 mono block chassis which has rear axle and tires.
LANTYPC is an ISO 9001 accredited mini mobile concrete batching plant manufacturer in China.

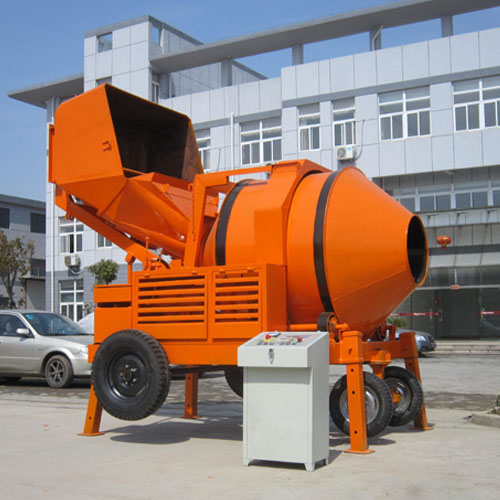

RDCM500-8EHW Mini Mobile Concrete Plant
Model RDCM500-8EHW is a mini model of mobile batch plant, which built with weighing system, including 3 load cells under the loading bucket, batch controller, and operating panel.
For RD mixer, electric model, it is very popular products in the market. But LANTYPC have done some innovation on the chassis and electric control system to ensure there is no trouble during operation.
Model
|
RDCM500-8EHW
|
Output
per hour (m3)
|
18-22
|
Unmixed
capacity (litre)
|
750
|
Mixed
capacity (litre)
|
500
|
Drum
rotation speed (rpm)
|
13-15
|
Mixing
motor (kW)
|
7.5
|
Hoist
motor (kW)
|
No
|
Water
pump motor (kW)
|
0.55
|
Loading
hopper
|
Hydraulic
tipping hopper
|
Drum
volume (litre)
|
2600
|
Drum
thickness (mm)
|
5
|
Weight
(kg)
|
2350
|
Overall
size (mm)
|
3900L
2300W 3750H
|
Towing
wheels
|
4wheels
|
Container
loading Qty. (1×20’
container)
|
2 units
|

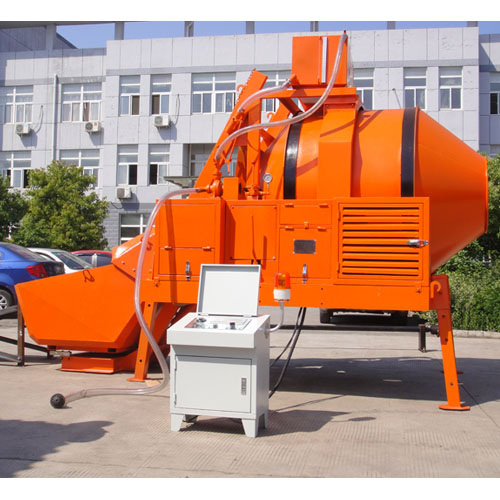

RDCM500-16DHW Mini Mobile Concrete Plant
Weighing concrete mixer is developed on the model of self-falling, reverse drum concrete mixer; the drum is driven by the gear ring, which is powered by diesel. The load cell has been settled under the loading bucket, which can detect the weight of material loaded in the bucket, so it can keep the accurate mixing ratio.
Features of RDCM500-16DHW Mini Mobile Concrete Batching Plant
RDCM500-16DHW mixer is featured with a control panel to monitor the loading weight of the materials. We offer you a steel slope for easily feeding by a weel barrow; the side located water pump helps suck water into the tank.
With LANTYPC weighing mixer, you can easily set the material formula to produce concrete on your requirement. Fast loading and mixing improves the productivity and saves your time.
Particular
|
Specifications
|
Model
|
RDCM500-16DHW
|
Charging
Volume
|
800L
|
Discharging
Volume
|
500L
|
Capacity
|
18-20 m3
/h
|
Mixing drum
Rotating Speed
|
15.7r/min
|
Maximum
size of Aggregate
|
60mm
|
Diesel
engine
|
Yanmar
CY1115 water cooling with hopper 16.2kW
|
Weighing
capacity
|
≦1000kg
|
Weighing
accurate error
|
≦2%
|
Overall
Dimension
(L×W×H)
|
3750×2240×3800
mm
|
Total
Weight (kg)
|
2050 kg
|
LANTYPC is the professional manufacture of various construction equipments like concrete mixer, dumper, mini mobile concrete plant, concrete pump, block moulding machine etc.
