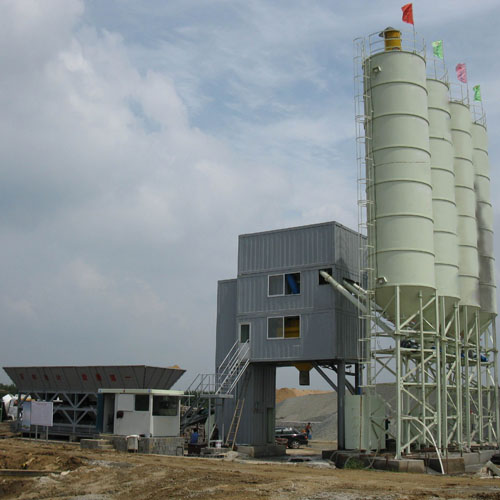

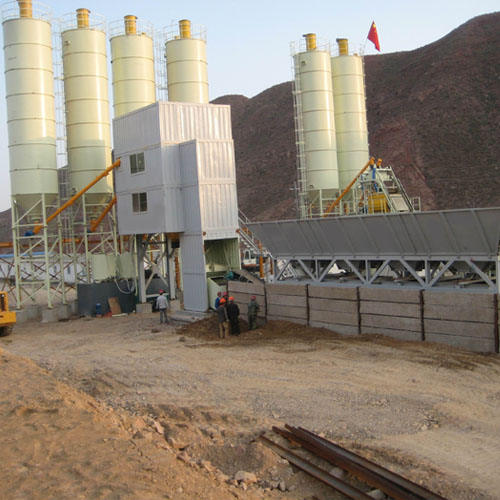

Containerized Concrete Batching Plants

Model: CBP90D/120D/150D/180D

Description

LANTYPC compact concrete batching plants are the latest concrete batching plant. LANTYPC containerized concrete batching plants have been designed in a more compact structure so that it can be fitted into 40 open top containers. So they can be transported to all over the world easier and cheaper. Elkon containerized concrete batching plants make their users more flexible and free by means of their advantages and their special designs.
LANTYPC is an ISO 9001 accredited compact concrete batching plant supplier in China

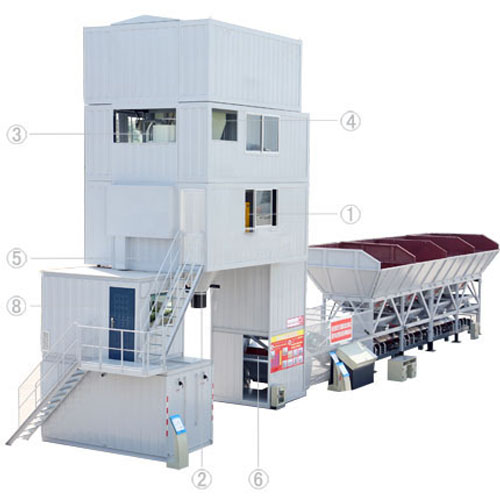

Components

1. The interior of the mixing plant needn’t to be cleaned manually, not sticking the mixer shaft and the mixing drum cover.
2. The concrete hopper adopts wear-resistant technique, the service life is 5 times longer before, and the hopper will not be damaged.
3. Additive scale of the containerized concrete batching plant adopts leakage-proof technique, ensuring the concrete production safety.
4. The water scale adopts pressurized water-discharging technique. It is convenient to add or reduce water, ensuring the control of the concrete slump.
5. Modular design, high industrial degree, fast assembling and debugging are features of compact concrete batching plant.
6. The hopper adopts techniques of not sticking sand and fast unloading. The loading process is fully sealed, which is environmental friendly and pollution-free.
7. The filler bin of the containerized concrete batching plant is installed with centralized controller and negative pressure pulse dust collection device, which facilitates the driver’s direct control, realizing the safety of the cement bin and environment protection and dedusting.
8. The operation of the control system is easy, stable, and reliable, which has many functions such as supplement, deduction, successive production, intelligent alarm, etc.

Please also review our other products Stationary (Fixed) Batching Plant| Mini Mobile Concrete Plant|

Parameter of CBP120D Concrete Batching Plant (Quickly)

Name	Main	Spc	Num	Unit	Remark
1Batching Machine PLD3200QD-IV	Bin	15m3	4	Nos	Measuring Precision:±2%
	Measure Hopper	3000kg	2	Nos
	Measure sensor	XYL-2	16	Nos
	Belt	B800	1	Nos
	Electrical Roller		1	Nos
2 Mixer	Concrete Mixer	MAO3000/2000	1	Nos
	Steel structure		1	Nos
	Packing structure		1	Set
	Dust Catcher		1	Set
	Water Measure System	Max;500kg	1	Nos	Accuracy:±1%
	Cement Measure System	Max::1200kg	1	Nos	Accuracy:±1%
	Additive scale system	Max:50kg	1	Nos
3Water System	Water Tank	7m3	1	Nos
	Water Pump	5.5k2	1	Nos
	Valve	DF-25	1	Set
	Pneumatic Butterfly	D671X-160N80	1	Nos
	Pipeline		1	Set
4Additives Supply System	Additive Tank	2.5m3	2	Nos
	Pump	BW6-16	2	Nos
	Pipeline		2	Set
	Mixer Of Gas		2	Set
5Pneumatic System	Air Compressor		1	Unit
	Gas Tank	C-0.6/0.7	1	Nos
	Pipeline		1	Set
6Control System	Control Room with AC		1	Set
	Soft	HBK100	1	Set
	Computer		1	Set
	PLY Controller		1	Set
	Printer	LQ300	1	Unit
	Monitor and Control System		1	Nos
7	Split Type Silo	PSC100 Discharging high:3.32m	4	Set
8	Screw	LSY273-12	3	Unit
9	Screw	LSY219-12	1	Unit
