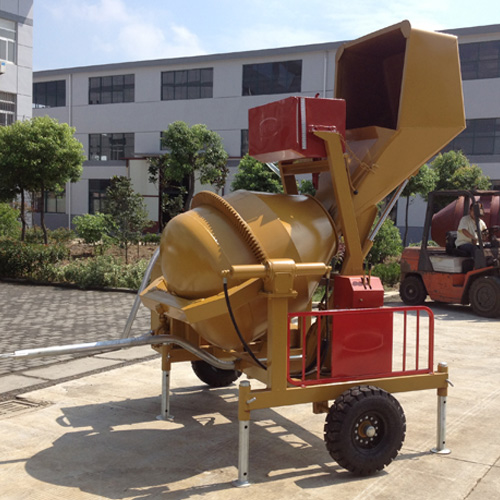

Concrete Mixer with Hydraulic Hopper

Performance of Concrete Mixer with Hydraulic Hopper

The machine applies advanced metallurgical technology, which is designed to perform for continuous mass concreting required at any site.
Chassis of the concrete mixer: Made from rectangular & square tubular sections of high strength

Drum

Large drum with 20% overload capacity is fabricated from rolled steel plates. It is bevel shaped and it revolves noiselessly on a single hot blasted CI gear. A quick homogeneous mix with enhanced daily output is guaranteed.
Hopper of Cement Mixing Machine:
Top covered, centrally supported hopper mounted on rectangular tube loaded arm, specifically designed for rapid discharge

Operation Safety of the Concrete Mixer

1. Light, smooth and positive linkages allows operator fatigue working
2. Full covered moving parts and dampeners provided in compliance with safety regulations
3. Ample space in the engine compartment facilitates air circulation and convenience in maintenance.
4. Topmac is an ISO 9001 accredited hopper mortar mixer manufacturer in China

Main Specifications

	TDCM250-13DH
Power	13KW
Power source	Diesel Or Electrical Motor
Drum total Volume	660 liter
Capacity (unmixed)	320 litre
Capacity (mixed)	200 litre
Mixing time	40 sec.
Capacity Per Hour	6~8m3
Dimension	2170×2636×2938mm
Steel Thickness of Drum	4mm
Operation	Manually Fed
Weight	1050kg

Shipping, Delivery & Maintenance

20’ container can be loaded with	4 units
40H’ container can be loaded with	8 units
Delivery time	4 weeks after confirmation of the order
