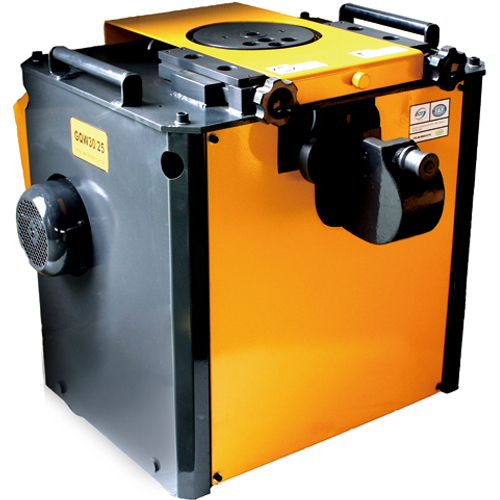

Steel Bar Bender and Cutter
Features of Steel Bar Bender and Cutter Machine
1. One machine both for bending and cutter which is convenient and fast.2. The worm type gear adopts high quality of tin bronze, which ensure a stable transmission, large loading capacity and long working life.
3. Insert pin type and adjustable saddle enable the accuracy bending angle.
Main Specifications of Steel Bar Bender Cutter
| Model | GQW20/30 | |
| Max. Cutting Diameter | Q235 Mpa:25mm | C45 Mpa:18mm |
| Max. bending Diameter | Q235 Mpa:30mm | C45 Mpa:25mm |
| Working disc speed | 11r/min | |
| Motor power | 2.2kw-4p | |
| Size | 990×1000×1150mm | |
| weight | 360kg | |
| Way of Bending | Manual /automatic | |
