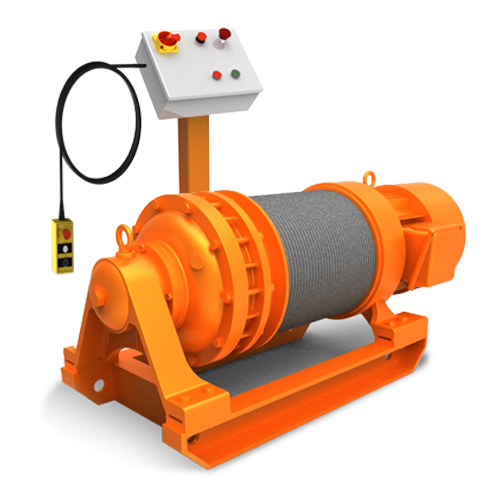

Wire Rope Electric Hoist

Description

JK series wire rope electric hoist is a small size, light weight, flexible operation, safe, reliable and durable electric cranes.

Application of Wireless Cable Hoist

Wire rope electric hoist: mainly used for hoisting, pulling, unloading, pushing, and dragging heavy loads such as medium-sized concrete, steel and mechanical equipment. It is applicable to construction and installation companies, mines, factories civil construction and installation works. The structure of wireless cable hoist is characterized by rope arranged in order. There are hanging installation which is reliable for the piers, bridges, ports and other road and bridge projects and large industrial installations

Advantages

Wire rope electric hoist is a kind of external power-driven equipment, and it can’t operate in the absence of power. Topall Company is an experienced electric crane manufacturer in China. We focus on small and medium sized construction machinery R&D, production and international trade.

The technological specifications

Type	JK1.25D	JK2D	JK3.2D
Wire Rated Pull(KN)	12.5	20	32
Wire Dim(mm)	φ11	φ13	φ17.5
Wire Rated Speed(m/min)	46	36	28
Electric Motor Model	ZD141-4	ZD151-4	ZD152-4
Power (KW)	7.5	13	18.5
Drum Dim(mm)	φ210	φ250	φ250
Wire Length of Drum(m)	120	190	250
Weight(KG)	315	510	810
Oversize L×W×H(MM)	1140×400×450	1400×470×548	1600×600×600
Tail Size(mm)	600×360	732×420	860×550
