Concrete Mixer with Mechanical Hopper and Lifter

Description

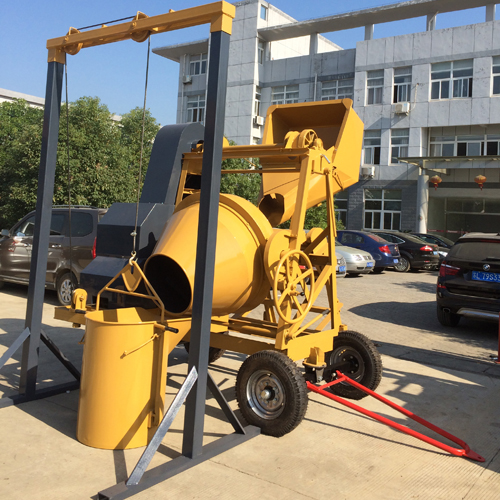

Concrete mixer with mechanical hopper and lifter is the mixer and hoister designed together with 2 functions realized in one machine. The diesel engine of the concrete mixer can drive both the mixer and the hoister.

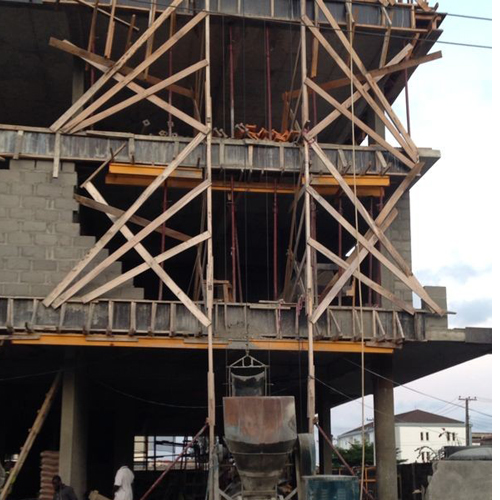

The Hoist frame fits the building; so the hoisting height can reach 24m plus. It can lift not only the mix material but also blocks, sand, or other construction material.

Advantages of Concrete Mixer with Mechanical Hopper and Lifter

1. The machine has the advantage of low cost, mechanically fed and manual tilting drum mixer.
2. High capacity concrete mixer is capable of producing up to 32 batches (6 cubic meters) per hour.
3. Mechanical loading hopper is used to load materials, which ensures high production rates
4. There are different choices of all kinds of diesel engine or 3-phase electric motor.
5. Positive heavy duty driveline adopts roller chain, bevel wheel and pinion
6. Jacking system of the concrete mixer with mechanical hopper and lifter allows wheel removal for storage during long term use.
7. Outrigger legs maintain stability throughout the loading cycle.
8. Topmac is an ISO 9001 accredited concrete mixer manufacturer in China.

Main Specifications

	TDCM200-13DL
Power	13KW
Power source	Diesel or Electrical Motor
Drum total Volume	660 liter
Capacity (unmixed)	320 litre
Capacity (mixed)	200 litre
Mixing time	40 sec.
Capacity Per Hour	6~8m3
Dimension	1930×2300×2950mm
Steel Thickness of Drum	4mm
Operation	Manually Fed
Weight	1250kg/1300kg
Lift High	24m
Lift Weight	200L or 500kg
Double Framework Distance	2000mm

Shipping, Delivery & Maintenance

20’ container can be loaded with	3 units
40H’ container can be loaded with	6 units
Delivery time	4 weeks after confirmation of the order
