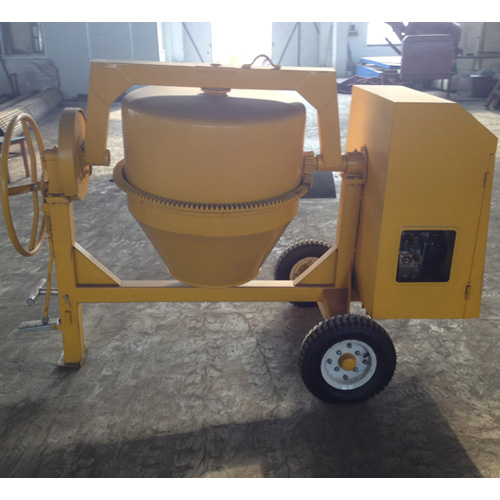

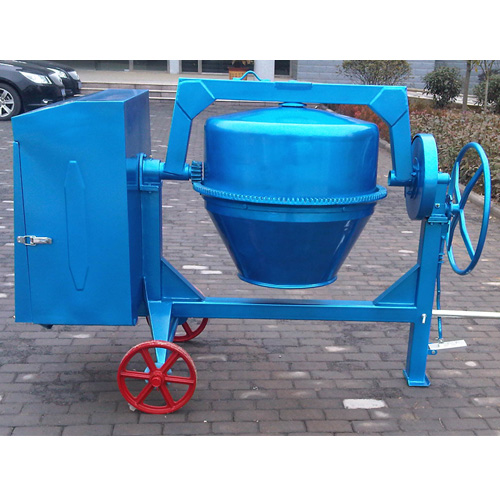

Portable Concrete Mixer

Advantages of Portable Concrete Mixer

1. Hand-fed concrete mixers with 120 litres mixed batch output
2. All models are capable of mixing at a rate of 25 batches per hour, which makes production output rate ranging from 3 per hour.
3. Robustly engineered with fully enclosed drivelines, Topmac portable concrete mixers provide safe, reliable performance and long service life.
4. Positive, heavy duty driveline using belt driver, bevel wheel and pinion
5. Highly efficient, two pieces of heavy gauge, steel drum
6. The cement mixing machine is equipped with multi-position lockable drum.
7. Fast tow trailer models available with adjustable towbar, pneumatic tyres, mudguards and independent suspension
9. Topmac portable concrete mixer for sale are marked with CE certificate
10. Topmac is an ISO 9001 accredited concrete mixer manufacturer in China.
11. Efficient after sales spares service through Topmac’s worldwide distributor network

Specifications

Model	TDCM120
Drive System	V-Belt
Dump Type	Manual
Discharge Height	18 Inch/480mm
Drum Type	Steel
Tire Size(Optional)	Steel or 4.50-12
Frame Type	Tubular
Paint Type	Powder coat
Power Source	Electrical Motor ; Gasoline Engine or Diesel Engine
Drum Capacity	11 cu. Ft/350L/ 1 bags
Drum Opening	30Inch/760mm
Drum Depth	32inch/800mm
Overall Length	79inch/2010mm
Overall Width	40inch/1031mm
Overall Height	56inch/1413mm
Operating Weight	215kg/Steel ,228kg/Two Tire , 245kg/ Four Tire

Shipping, Delivery and Maintenance

40’ container can be loaded with	36 Unit
Delivery time	4 weeks after confirmation of the order
