Reversible Plate Compactor
Whether you are backfilling a trench, building a new highway, resurfacing a street or laying a new bridge deck, we will help you get to bottom of things by ensuring that you use the very best on top.

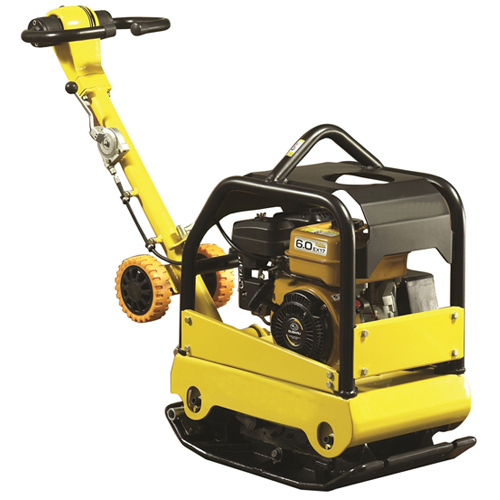

Reversible Vibratory Plate Compactor C160
Advantages
With the powerful design, our reversible vibratory plate compactor C160 is mainly used for compaction of sand gravel, grit and granular materials.Features
1. Easy to reach located controls2. Large shock mounts reduce vibrator to the handle
3. Heavy-duty shock mounts reduce vibration to the upper deck
4. Wear-resistant base plates extend service life, open design reduces dirt building
5. Centrally-located lifting bar allows easy transportation in and out of trenches
6. Wrap around protection cage protects the plate from accidental job-site damage
7. Heavy duty industrial throttle control is available as optional.
8. Extension plate (weight 12kg) is available with C160.
| Model | C160 | ||
| Picture |
|
||
| Engine Type | Kipor 178 Diesel | EX17 Robin Petrol | GX160 Honda Petrol |
| Power kw(hp) | 4.4(6.0) | 4.2(5.7) | 4.0(5.5) |
| Operation Mass kg(lbs) | 180(403) | 161(361) | 161(361) |
| Frequency vpm | 4000 | ||
| Centrifugal Force KN | 30.5 | ||
| Compaction Depth cm(in) | 50(19) | ||
| Travel Speed cm/s | 25(10) | ||
| Efficiency m2/hr(f2.hr) | 570(6100) | ||
| Plate Size cm(in) | 73×50(29×20) | ||
| Dimension cm(in) | 86×57×93(34×22×37) | ||

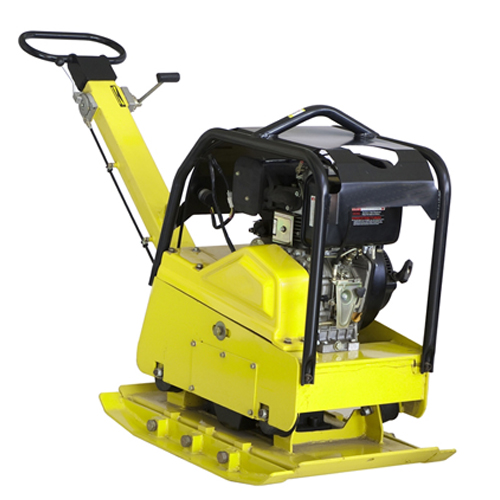

Reversible Plate Compactor C330
Advantages
The reversible vibratory plate compactor adopts mechanical control system, which makes it more reliable and easy to maintain. Compaction depths of this machine is up to 900mm. General road building projects, compacting foundations and backfills are all standard jobs of our heavy duty reversible vibratory plate compactors.Features
2. Easy to reach located controls3. Large shock mounts reduce vibrator to the handle
4. Heavy-duty shock mounts reduce vibration to the upper deck
5. Wear-resistant base plates extend service life, open design reduces dirt building
6. Centrally-located lifting bar allows easy transportation in and out of trenches
7. Semi-covered protection cage protects the plate from accidental job site damage
8. Heavy duty industrial throttle control is available as standard
9. Fully sealed battery cover for electric starter type, which is standard for diesel engine.
| Model | C330 | ||
| Picture |
|
||
| Engine Type | Kipor 186 Diesel | EX27 Robin Petrol | GX270 Honda Petrol |
| Power kw(hp) | 6.6(9.0) | 6.6(9.0) | 6.6(9.0) |
| Operation Mass kg(lbs) | 355(795) | 317(710) | 321(719) |
| Frequency vpm | 3750 | ||
| Centrifugal Force KN | 38 | ||
| Compaction Depth cm(in) | 90(34) | ||
| Travel Speed cm/s | 0~35 | ||
| Efficiency m2/hr(f2.hr) | 650(6950) | ||
| Plate Size cm(in) | 89×67(35×26) | ||
| Dimension cm(in) | 178×67×90(70×26×35) | ||

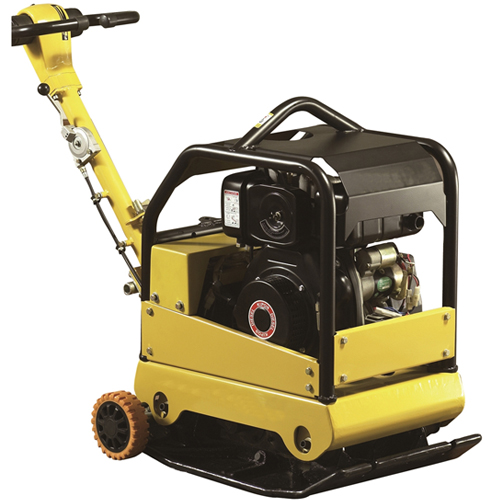

Reversible Plate Compactor C5020
Advantages
Hydraulic reversible plate compactor C5020 is mainly used for compaction of sand gravel, grit and granular materials.Features of Hydraulic Reversible Plate Compactor
1. Hydraulic adjustment control lever for easy direction change2. User friendly isolated vibration handle
3. Fully sealed lubricated wear resistant cast iron vibrator assembly
4. Site operation for problem areas
5. Handle can fold to 90 degree position for easy transportation.
6. Infinitely variable hydraulic forward and reverse motion
8. Unique built transport wheels provide easy transportation
9. Convenient oil drain hose
10. Robust design of sealed belt cover for clutch and belt protection
11. Electric starter is as an option for lombardini diesel engine
12. Heavy-duty roll cage with lifting eye protect against dirt and damaging
| Model | C5020 | ||
| Picture |
|
||
| Engine Type | Kipor 170 Diesel | EY20 Robin Petrol | GX160 Honda Petrol |
| Power kw(hp) | 3.1(4.2) | 3.7(5.0) | 4.0(5.5) |
| Operation Mass kg(lbs) | 145(320) | 135(298) | 135(298) |
| Frequency vpm | 5400 | ||
| Centrifugal Force KN | 20 | ||
| Compaction Depth cm(in) | 45(18) | ||
| Travel Speed m/min | 22 | ||
| Plate Size cm(in) | 65×40(26×16) | ||
Hydraulic Reversible Plate Compactor C5030
| Model | C5030 | ||
| Picture |
|
||
| Engine Type | Kipor 178 Diesel | EY28 Robin Petrol | GX270 Honda Petrol |
| Power kw(hp) | 4.4(6.0) | 5.5(7.5) | 6.6(9.0) |
| Operation Mass kg(lbs) | 195(430) | 165(364) | 165(364) |
| Frequency vpm | 5400 | ||
| Centrifugal Force KN | 20 | ||
| Compaction Depth cm(in) | 45(18) | ||
| Travel Speed m/min | 20 | ||
| Plate Size cm(in) | 65×50(27×20) | ||
