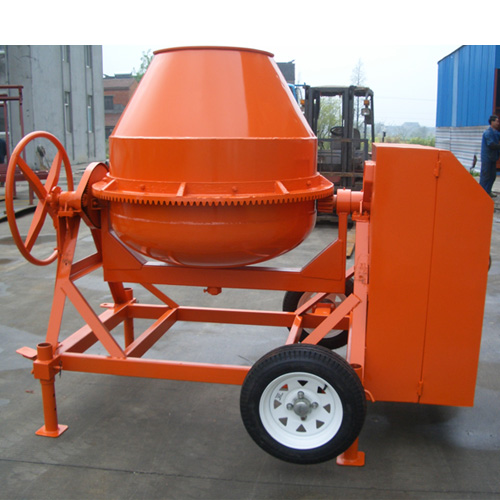

Hand Fed Concrete Mixer

Advantages of Hand Fed Concrete Mixer

1. Hand-fed concrete mixers from 175~ 200 litres mixed batch output
2. All models are capable of mixing at a rate of 30 batches per hour, which makes the production output rates ranging from 3 to 6 cubic metres per hour.
3. Robustly engineered with fully enclosed drivelines, Topmac concrete mixers provide safe, reliable performance and long service life.
4. Positive, heavy duty driveline using belt driver, bevel wheel and pinion.
5. Highly efficient, two piece heavy gauge, steel drum
6. The hand fed concrete mixer is equipped with multi-position lockable drum.
7. Fast tow trailer models available with adjustable towbar, pneumatic tyres, mudguards and independent suspension
8. Topmac is an ISO 9001 accredited cement mixer supplier in China.

Main Specifications

	TDCM175-6DA/B(10/7 Cft.)
Power	6hp
Power source	R180 Diesel Or 4kw Electrol Motor
Drum total Volume	580 liter
Capacity (unmixed)	280 litre
Capacity (mixed)	175 litre
Mixing time	100 sec.
Capacity Per Hour	4.5m3
Dimension	3720×1160×1860mm
Steel Thickness of Drum	4mm
Operation	Manually Fed
Weight	580kg/650kg

Shipping, Delivery and Maintenance

20’ container can be loaded with	5 units
40H’ container can be loaded with	24 units/ 2 decks
Delivery time	4 weeks after confirmation of the order
