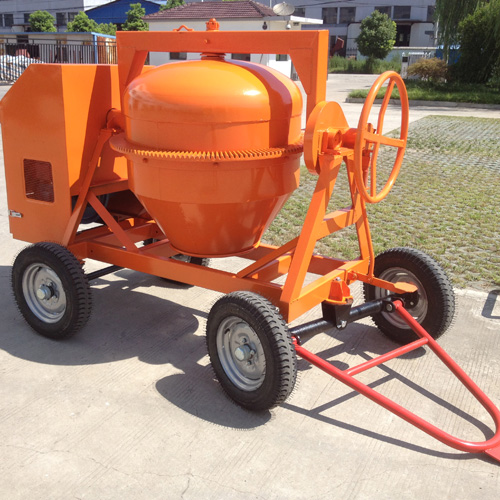

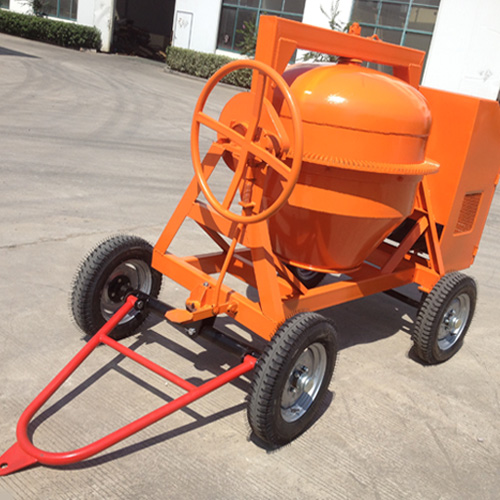

Portable Concrete Mixer without Hopper

Advantages of Portable Concrete Mixer without Hopper

1. This concrete mixers have 125 litres mixed batch output.
2. All models are capable of mixing at a rate of 25 batches per hour, which makes production output rate ranging from 3 per hour.
3. Robustly engineered with fully enclosed drivelines, Topmac portable concrete mixer without hooper provides safe, reliable performance and long service life.
4. Positive, heavy duty driveline using belt driver; bevel wheel and pinion.
5. Highly efficient, two pieces of heavy gauge, steel drum
6. The machine is equipped with multi-position lockable drum.
7. Fast tow trailer models available with adjustable towbar, pneumatic tyres, mudguards and independent suspension
8. Topmac is an ISO 9001 accredited cement mixing machine supplier in China.





Main Specifications


TDCM125-6DA (7/5 Cft.) TDCM125-6DB (7/5 Cft.)
Power 6hp
Power source R180 Diesel Or 4kw Electrical Motor
Capacity (unmixed) 200 litre
Capacity (mixed) 125 litre
Mixing time 100 sec.
Capacity Per Hour 3 cum
Dimension 2050×1060×1780mm
Steel Thickness of Drum 4mm
Operation Manually Feed
Weight 520 kg

Shipping, Delivery & Maintenance

20’ container can be loaded with 12 units / 2 decks
40H’ container can be loaded with 26 units/ 2 decks
Delivery time 4 weeks after confirmation of the order
