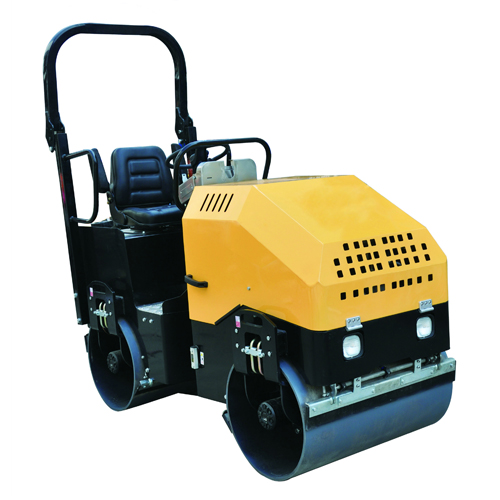

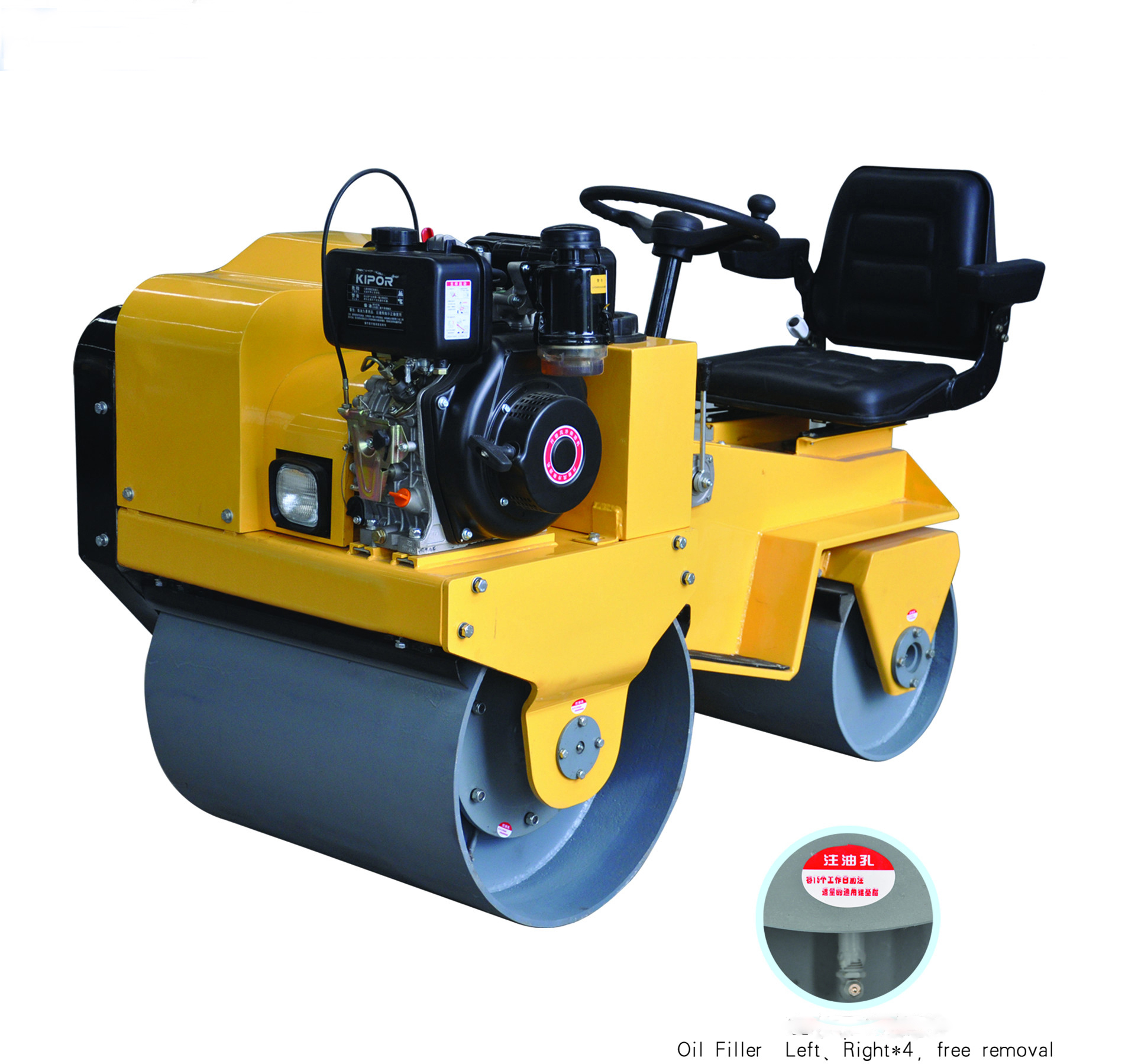

Ride-on Road Roller

Description

The ride-on road roller is used for compaction of asphalt surface, gravel, sand and other projects.

Features of Ride-on Double Drum Vibratory Road Roller

1. The machine can work in a small area because of the small operating radius.
2. Ride-on road roller adopts domestic famous diesel engine to ensure the quality, superior performance and easy start-up.
3. Ride-on double drum vibratory road roller has variable speed by using SAUER hydraulic drive unit.
4. Handrails are flexible and suitable for workers who have different height to operate by using plane gear adjusting mechanism.
5. The road roller adopts international famous NSK bearing MITSUBOSHI triangle belt to ensure the work performance.

Imported power with original packaging
Imported hydraulic double-drive motor
Imported variable displacement piston pump
Hydraulic vibration

Types

RVR10, RVR1018

Typical of RVR10 Specification

Model	RVR10
Travel Speed	0-5km/h	Water tank	15L
Climbing Capacity	30%	hydraulic oil tank	5L
Drive	hydrostatic drive	Engine Model	CF178F
Vibration Control	Electromagnetic Clutch	Power	6.0HP
Static linear load	55N/cm	Steel Wheel Size	φ560X700 φ425X500
Nominal amplitude	0.5mm	Package Size	1900X1100X1300
Vibration frequency	70HZ	Net Weight	1000kg
Vibrating force	20KN	Starting Mode	manual operation/Electric
