Electric Reverse Drum Mixer
-
- RDCM350-6EElectrol Reverse Drum Mixer with Mechanical Hopper (Skip)
-
- RDCM350-11EHSElectrol Reverse Drum Mixer with Mechanical Hopper (Slide)
-
- RDCM500-17EHSElectrol Reverse Drum Mixer with Mechanical Hopper (Slide)
-
- RDCM1000-30EHSElectrol Reverse Drum Mixer with Mechanical Hopper (Slide)
-
- RDCM350/500-8EHElectrol Reverse Drum Mixer with Hydraulic Hopper
Description
For electric reverse drum mixer, it is very popular products in the market. LANTYPC have done some innovation on the chassis and electric control system to ensure that there is no trouble during operation.Features of Electric Reverse Drum Mixer
1. Heavy duty, reversing drum, mechanically fed hopper mortar mixer manufactured to the highest specification2. High capacity mixers are capable of producing up to 40 batches per hour. Standard machine includes water tank with Water Meter.
4. Towable chassis with two or four pneumatic tyred wheels.
5. Jacking system of the electric reverse drum mixer allows wheel removal for storage during long term use.
6. Topmac mixers for sale in the EC are CE marked.
7. Topmac is an ISO 9001 accredited hopper mortar mixer supplier in China.
8. There is efficient after sales spares service through Topmac worldwide distributor network.
9. Mechanical operated feed hopper of electric reverse drum mixer has different choices of hand/electric start, air cooled diesel engine, water cooling diesel engine or 3-phase electric motor.
Typical one

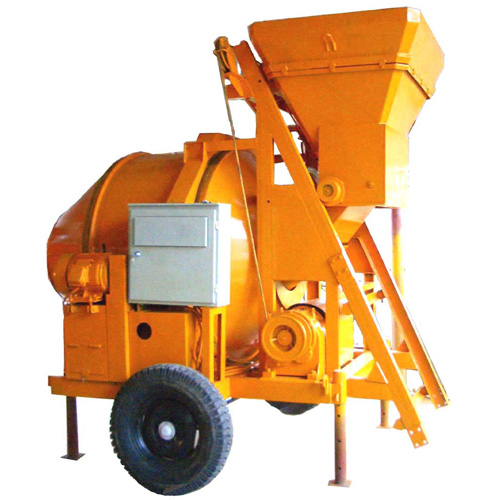

Model RDCM500-8EHW, a mini model of mobile batch plant which built with weighing system, includes 3 load cells under the loading bucket, batch controller, and operating panel.
 |
 |
 |
|
Control panel with batch Controller
|
3 Load cells under weighing hopper |
Wheel barrow loading platform |
Specifications of Electric Reverse Drum Mixer
| Model | RDCM500-8EH |
| Drum Volume | 2600L |
| Capacity of loading | 750L |
| Capacity of discharging | 500L |
| Drum Thickness(mm) | 5mm |
| Hopper Thickness(mm) | 3mm |
| Capacity of water tank | 140L |
| Power source | 380V/220V/3-phase electric motor |
| Power | 8KW |
| Max towing speed | 20 kw/h |
| Output | 18 -22 cubic meter/hour |
| Size(L×W×H) | 3750×2240×3800mm |
| Total weight | 2050kg |
| Hopper lifting model | Hydraulic tipping hopper |
| Towing Wheel | Two wheels or Four wheels |
Container Loading Plan
| 20’ container can be loaded with | 2 units |
| 40’GP container can be loaded with | 4 units |
