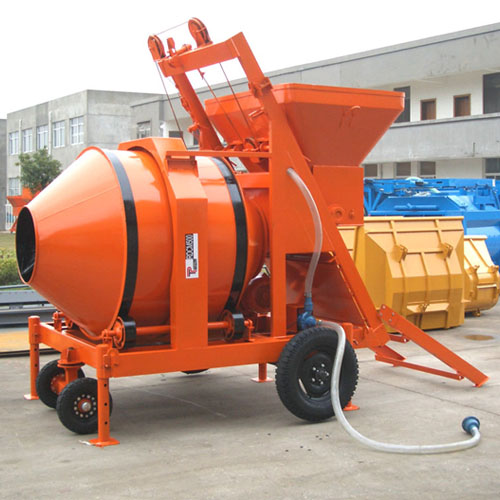

Electric Reverse Drum Mixer
Parameter
| Model | RDCM500-17EHS |
| Drum Volume | 2600L |
| Capacity of loading | 750L |
| Capacity of discharging | 500L |
| Drum Thickness(mm) | 5mm |
| Hopper Thickness(mm) | 4mm |
| Output | 18-22 cubic meter/hour |
| Drum rotating speed | 13r.p.m |
| Max.towing speed | 20km/h |
| Power | 17kw |
| Power source | Electric motor, 3-phase, 380v, 50Hz or 3-Phase, 220v,60hz |
| Size(L×W×H) | 3900×2300×3750mm |
| Total weight | 2350kg |
| Hopper lifting model | Wire rope slide hoisting hopper |
| Towing wheels | Two wheels or Four wheels |
Container Loading Plan
| 20’ container can be loaded with | 2 units |
| 40’GP container can be loaded with | 4 units |
