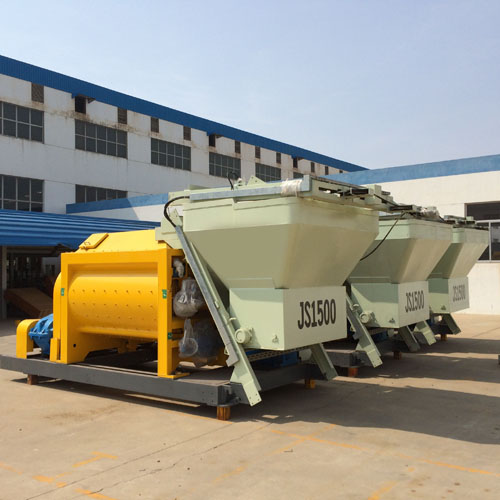

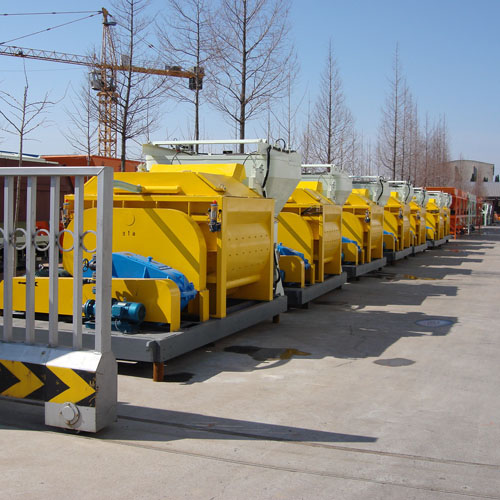

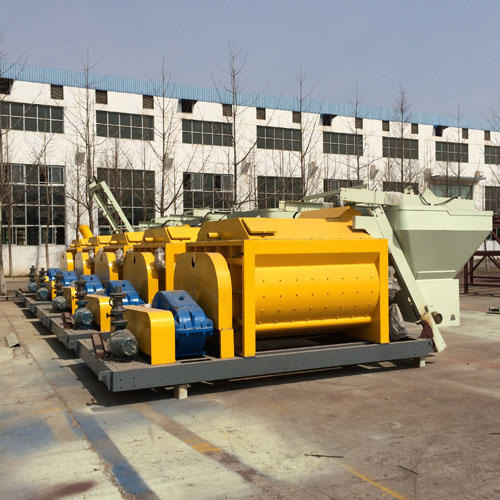

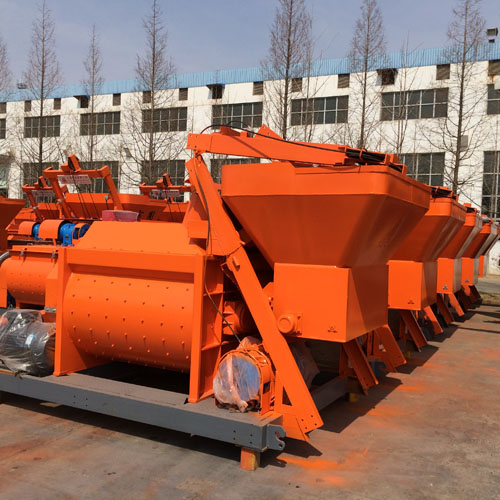

Twin Shaft Concrete Mixer
-
- JS500Twin Shaft Concrete Mixer JS500
-
- JS750Twin Shaft Concrete Mixer JS750
-
- JS1000Twin Shaft Concrete Mixer JS1000
-
- JS1500Twin Shaft Concrete Mixer JS1500
Description
JS series twin shaft concrete mixer is double horizontal spindle forced mixer. It can work alone, or be combined with PLD series batching plant to work as simplified concrete mixing plant, or supply the main machine for the mixing plant. It can be applied in large, medium-sized, and small component factories and roads, bridges, water conservancy, ports, industrial or civil constructions, etc. The twin shaft concrete mixer can be used to mix the dry concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and various mortars. It is a high efficient machine with extensive applications.Features
1. Special drum prolongs the service life of the steel wire rope.2. Double horizontal spindle forced mixer adopts precise mechanical parts.
3. High-quality wear-resistant alloy casting parts and advanced production technology ensure the clearance of the mixing blades and the liner plate well-distributed.
4. The test run with dry aggregate supplies sufficient reasons for customers to choose LANTYPC.
5. Concrete intensity test proves the excellent performance of the twin shaft concrete mixer.
6. The foundation is required to be cast with enforced concretes.
7. Topmac mixers for sale in the EC are CE marked.
8. Topmac is an ISO 9001 accredited mortar mixer manufacturer in China.
9. Efficient after sales spares service through Topmac’s worldwide distributor network is available.
Types
JS500, JS750, JS1000, JS1500Specifications
Typical one of the JS500 Twin Shaft Concrete Mixer| JS500 | |||
| Total Power | 34.4 hp, 380V, 3- Phase 50 HZ | ||
| Main Motor | 25.2 hp | Hoist Motor | 7.5 hp |
| Water Pumping Motor | 1 hp | Discharging Motor | 0.75 hp (optional) |
| Capacity (unmixed) | 800 liter / 28.3 cubic | ||
| Capacity (mixed) | 500 liter / 17.7 cubic | ||
| Capacity per hour | 25 cum / 883 cubic | ||
| Mixing time per batch | 70 sec. | ||
| Dimension | 4486×3030×5280mm | ||
| Weight | 4000 kg | ||
Shipping, Delivery & Maintenance
| 20’ container can be loaded with | 2 complete units |
| Delivery time | 3 weeks after confirmation of the order |
| Maintenance | |
| The mixer should be cleaned after work every day, kept lubricated at all points where grease caps have been provided every week. | |
