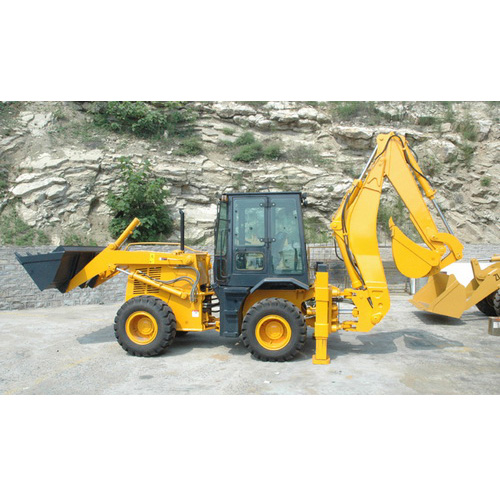

Backhoe Loader

Features of Backhoe Loader

1. A central hinged frame, featured by small turning radius, flexible trafficability and excellent lateral stability, is convenient for operations in narrows sites.
2. The design of loading attachment exterior refers to the 3CX structure of JCB Corporation in UK, while the exterior of excavating gear refers to the 310SE structure of John Diehl. By using this advanced technology, the overall appearance of the backhoe loader seems more attractive. And the cab, with large turning glass in front and rear, has good lighting and wide visual field.
3. The brake system of the backhoe loader is safe and reliable by adopting air-over-oil caliper disc type foot brake system and drum-type hand brake.
4. The hydraulic mechanical drive system enhances the reliability of the drive system.
5. The backhoe loader adopts full-hydraulic steering, power-shift and hydraulic control to a working device, which ensures the light and flexible operation and stable and reliable movement.
6. Low-voltage wide-base engineering tyres and rear axle with manual swing are adopted to reach excellent cross-country ability and trafficability.
7. The digging device with the property of lateral sliding enables a wider application range of the backhoe loader.
8. The machine uses suspending damping chair with handrail and seat belt, which improve the security and comfort.
9. It is easy to observe the oil level for the convenient position of the fuel tank.
10. TOPMAC is an ISO 9001 accredited backhoe loader supplier in China.

Technical Parameter

Overall Operating Weight	7800KG	Hub Reduction Type	One-stage Hub Reduction
Transportation Size		Rated Axle Load	7.5t
L×W×H mm	6239×2268×3760	Drive System
Wheel Base	2250mm	Torque Converter
Min. Ground Clearance	300mm	Model	YJ280
Load Capacity of Bucket	1.0m3	Type	Single-stage, Single-phase Three-element
Breakout Force	38KN	Peak Efficiency	84.40%
Load Lifting Capacity	2500KG	Inlet Pressure	0.4Mpa—0.55 Mpa
Dumping Height of Bucket	2742mm	Outer Pressure	1.2Mpa—1.5 Mpa
Dumping Distance of Bucket	1062mm	Cooling Type	Oil Cold Pressure Circulation
Max. Excavation Depth	52mm	Transmission
Backhoe Bucket Capacity	0.3 m3	Type	Counter Shaft Power-shift
Max. Excavation Depth	4503mm	Clutch Pilot Oil Pressure	1373Kpa—1569 Kpa
Rotary Angle of Bucket	190o	Gear Number	Two Advance Gears, Two Reverse Gears
Max. Traction Force	39KN	Max. Speed	22Km/h
Engine		Tyre
Model	YTR4108G60-1	Specification	16/70-20
Type	Straight, Direct Injection, Four-stroke, Direct-spraying Combustion Chamber	Air Pressure of Front Tyre	0.22 Mpa
Cylinder Number-Inner Diameter-Stroke	4-108×120	Air Pressure of Rear Tyre	0.22 Mpa
Rated Power	55KW	Brake System
Rated Rotational Speed	2400r/min	Service Brake	Air-over-oil Caliper Disc Brake
Min. Fuel Consumption	≤216g/km.h		External
Max. Torque	≥261.7N.M/1800r/min		Self-regulation
Displacement	4.4L		Self-balancing
Steering System		Parking/Emergency Brake	Operating Force to Exert Brake
Steering Gear Model	BZZ5-250		Manual Operating Force to Relieve Brake
Steering Angle	±36 o	Hydraulic System
Min. Turning Radius	5018mm	Breakout Force of Bucket	46.5KN
System Pressure	12Mpa	Breakout Force of Bucket Rod	31KN
Drive Axle		Lifting Time of Bucket	5.4S
Manufacturer	Feicheng Axle Plant	Fall Time of Bucket	3.1S
Main Drive Type	Double-stage Reduction Type	Dumping Time of Bucket	2.0S
Note: Parameters shown in the chart are subject to change without notice.
