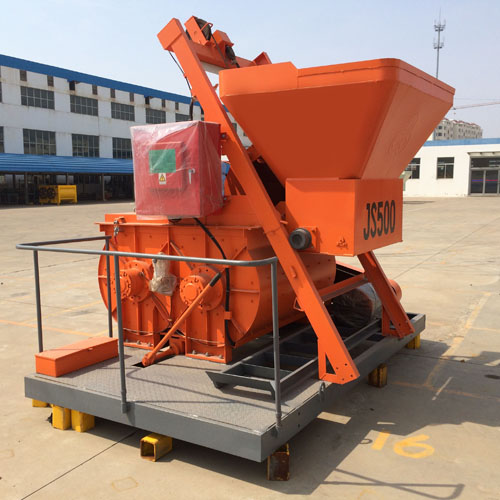

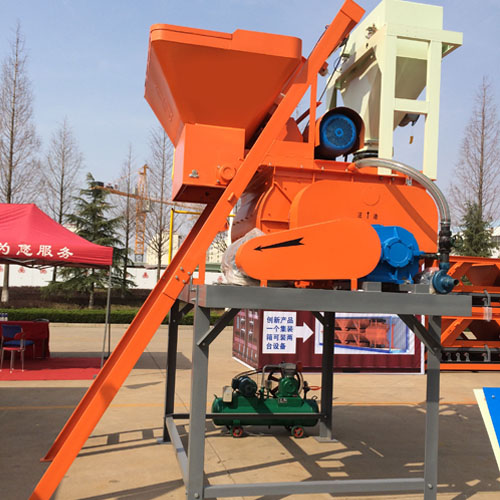

Twin Shaft Concrete Mixer
Main Specifications
|
|
JS500 | ||
| Total Power | 34.4 hp, 380V, 3- Phase 50 HZ | ||
| Main Motor | 25.2 hp | Hoist Motor | 7.5 hp |
| Water Pumping Motor | 1 hp | Discharging Motor | 0.75 hp (optional) |
| Capacity (unmixed) | 800 liter / 28.3 cuf | ||
| Capacity (mixed) | 500 liter / 17.7 cuf | ||
| Capacity per hour | 25 cum / 883 cuf | ||
| Mixing time per batch | 70 sec. | ||
| Dimension | 4486×3030×5280mm | ||
| Weight | 4000 kg | ||
Shipping, Delivery & Maintenance
| 20’ container can be loaded with | 2 complete units |
| Delivery time | 3 weeks after confirmation of the order |
| Maintenance | |
| The mixer should be cleaned after work every day, kept lubricated at all points where grease caps have been provided every week. | |
