Underground Diesel LHD Loader

Description

This underground diesel LHD mining machinery wheel loaders can be used to shovel, load and transport the loosen materials in mine and well. The diesel underground loader (LHD) can also be applied to the tunnel engineering in railway, highway, and water conservation project, etc. It is especially suitable for working under the hostile condition, such as narrow, low-rise and muddy working places.

Advantages

This underground diesel LHD mining machinery wheel loader adopts America DANA converter, power shift transmission and drive axle, integrate parking brake and working braking in one system to simplify braking system. SAHR brake (spring applied and hydraulic released) enables a much safer operation. Bucket adopts V structure and reduces shovel resistance.

Main Configuration of Diesel Underground Loader (LHD)

1. Diesel Engine
Manufacture: DEUTZ
Model: BF6M1013EC Made in Original German
Rated Power: 165KW/2300RPM
Cooling System: Water-Cooled,turbo-charged
Exhaust System: Exhaust conditioner silencer and purifier.
2. Hydraulic Torque Converter of Underground Diesel LHD Mining Machinery Wheel Loader
Manufacture: DANA, AMERICA
Model: C270
Type: Single grade of two-element, with hydraulic drive pump
3. Power Shift Transmission
Manufacture: DANA, AMERICA
Model: R 32000 Series
Type: Power Shift
Gears: 3
4. Drive Axle of Diesel Underground Loader (LHD)
Manufacture: DANA, AMERICA
Model: 16D
Type: Front axle: NO-SPIN, Rear axle: Posi-Torq
5. Braking System of Underground Diesel LHD Mining Machinery Wheel Loader
Components: Service/Parking/Emergency brake
Features: Service/Parking/Emergency brakes are spring applied, hydraulically released type (SAHR),with fully enclosed, multiple wet discs at each wheel end.
6. Hydraulic System
Components: Servicing system, steering system, braking system, fill oil system, cable system
Feature: The work steering pump, steering pump, multi-directional control valve, conversion valve, charging valve and foot valve are all made by Parker Mico, etc.
7. Tire
Model: 17.5 × 25-20TT L-5S
Pressure: Front: 680 KPA Rear: 580 KPA
8. Others:
Hydro-cylinder: Self-made, the grease oil adopts imported combined seal
Blade: Hardness >HB500

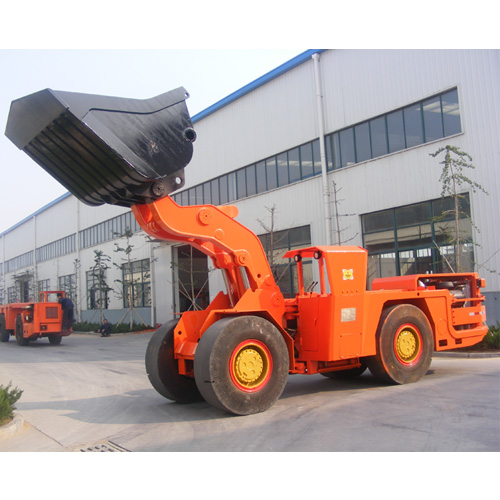

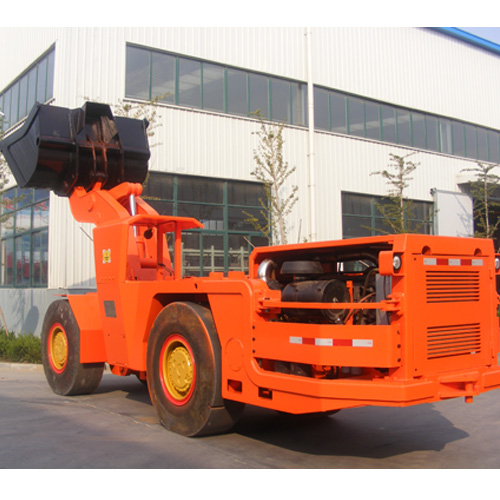

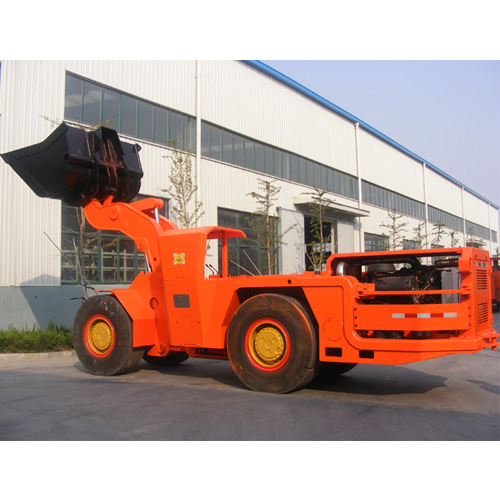

Scooptram View

Parameter of Underground Diesel LHD Mining Machinery Wheel Loader

1.	Main Dimensions:
	Dimension	9010mm×2174mm×2300mm
2.	Weights &Axle Loading Weight:
	Bucket Capacity(SAE Heaped):	3 m³
	Rated Loading Capacity(SAE Heaped):	6000 KG
	Machine Weight:	17200 KG
3.	Driving Speeds Forward and Reverse:
	First Gear:	0~4.7 Km/h
	Second Gear:	0~9.4 Km/h
	Third Gear:	0~18.4 Km/h
4.	Distance:
	Max. Discharging Height	1770mm
	Min. Discharging Distance:	1550mm
	Discharging Angle:	40°
	Wheel Base:	3245mm
	Leaving Angle:	14°
	Rear Axle Oscillation Angle:	±8°
	Min. Off-ground Clearance:	335mm
	Max. Gradeability:	25%
	Max. Traction Force:	128 KN
	Max. Shovel Force:	103 KN
5.	Steering
	Max. Steering Angle:	± 38 °
	Min. Steering Radius:	Inner: 3720 mm	Outer:6480 mm

Diesel Engine	Driver’ Cab	Front Frame & Working Part

Rear Car	Rear Cover	Central Articulated
