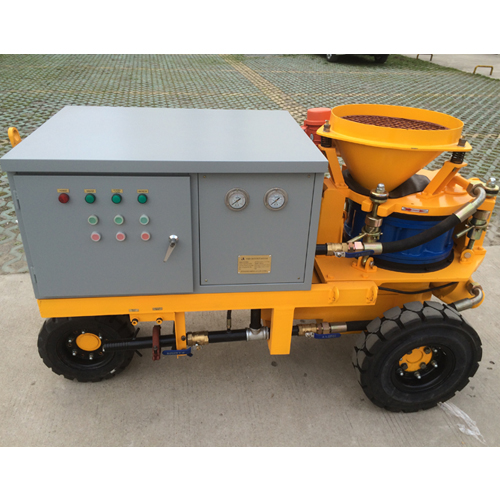

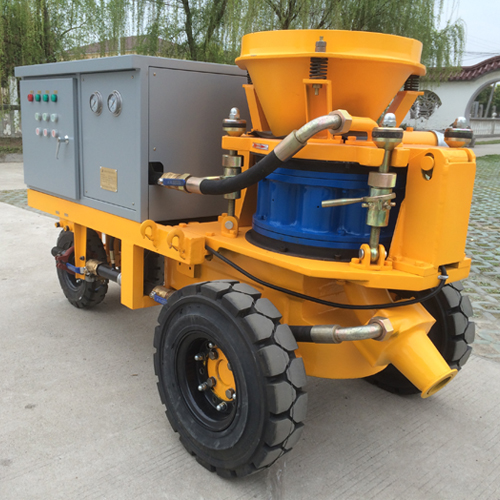

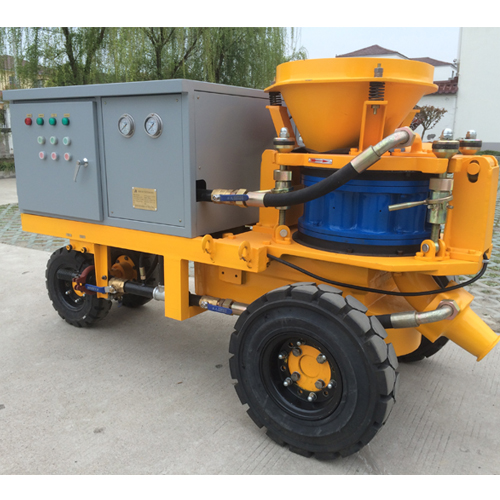

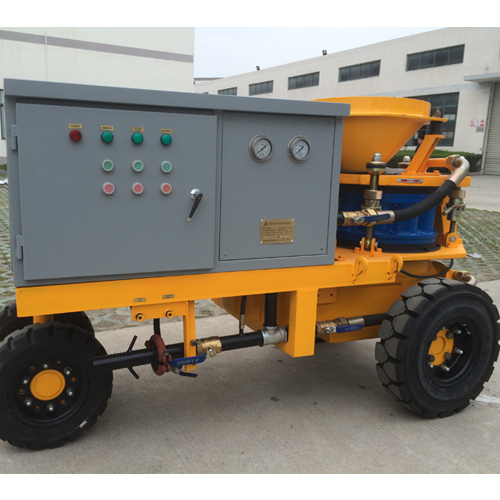

Wet-mix Shotcrete Machine PZS3000

Description

PZS3000 wet-mix shotcrete machine adopts advanced concrete spraying technique which is developed from advantages of both wet and dry mix shotcrete machine. The machine has been widely used in construction engineering. PZS3000 is a universal concrete spraying machine for the processing of wet or dry mix .The machine is suitable either for manual spraying or by means of a robotic arm.
PZS3000 is developed for the application of shotcrete in tunnels, mines and slopes. The shotcrete machine combined with dosing unit has been designed especially for fibre spraying.

Advantages

1. Electric drive can be combined with tyre chassis.
2. Air motor drive or diesel drive combined with single hydraulic power pack
3. Skid or Rail-wheel
4. Topmac is an ISO 9001 accredited shotcrete machine manufacturer in China.

Main Specifications

Type	PZS3000
Output	5 m3/h
Max. convey dist.	35 m
Max. aggregate size	φ15 mm
Concrete slump	8-15 cm
Hose inner size	φ50/65 mm
Operating air pressure	0.2-0.6 Mpa
Air consumption	9-10 m3/min
Discharge height	1.17 m
Rotor Rev.	11 r/min
Main electric motor power	7.5 kW
Dosing pump model	BRJ15
Dosing pump rated pressure	0.6 Mpa
Dosing pump output	17.5-88 L/h
Overall dimension	2050×950×1180 mm
weight	1200 kg
