Block Making Line

Introduction

Based on foreign advanced technology and processes, our company developed the largest mobile hydraulic brick making machine. This machine has some advantages:

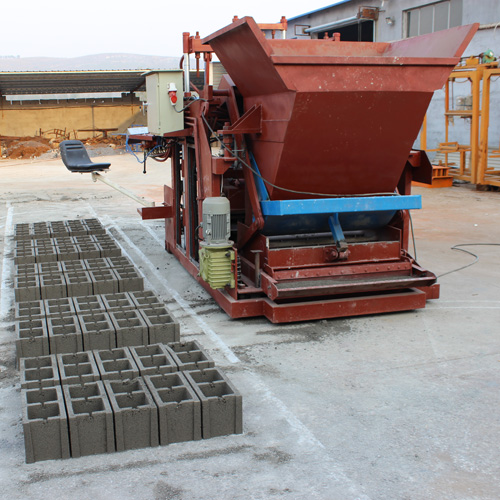

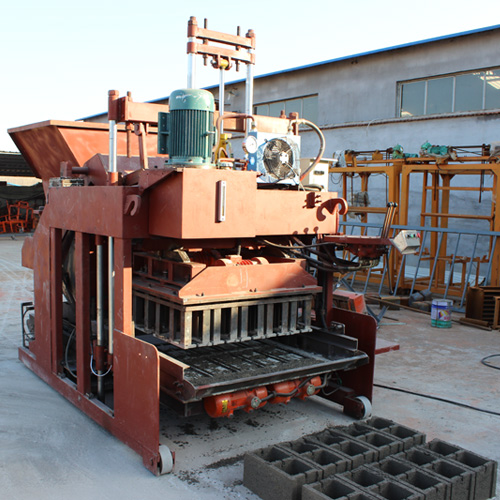

1. EBM10-22E mobile concrete block making machine has the largest productivity than any other mobile block machines. This kind of brick machine is manufactured on the basis of technical modifications of the original block shaping machines by changing the former one-time-vibration into twice-vibrations of molding core. So the block density becomes higher; the shaping speed becomes quicker. This model of machine can be suitable to the customers who have any kinds of existing cement working sites.
2. The host machine achieves box vibration, hydraulic stripping and multidirectional automatically movement through advanced techniques. EBM10-22E mobile concrete block making machine works faster because of automatically feeding system. High quality of steel, precision welding and hydraulic system maintain a longer service life and low error rate during work.
3. EBM10-22E mobile concrete block making machine has several function features including easy operation, stability, and lower power consumption. Mass raw material can be used during production such as concrete, cement, small stone, powder, san, coal gangue, slag, construction waste and so on.

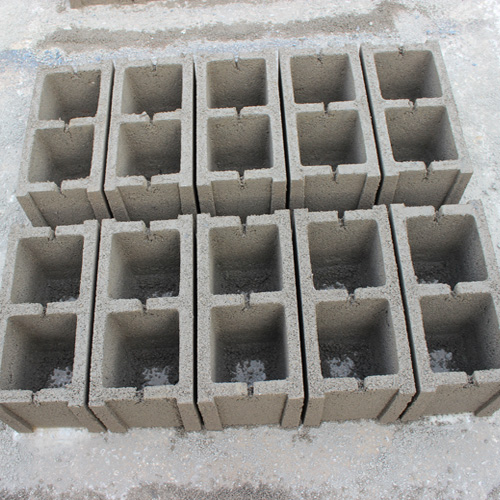

Capacity of EBM10-22E Mobile Hydraulic Brick Making Machine

Size	Size mm	Cycle	Pcs / Mold	Per hour	Per day
	400×200×200	20-25s	10	1500pcs	12000pcs
	400×150×200	15-20s	14	1800pcs	14000pcs

Parameters

Overall dimension	3300×1800×2300mm
Demold method	Hydraulic
Turning method	Hydraulic
Hydraulic system pressure	16-20Mpa
Excitation frequency	3200Hz
Total power	16KW
Total mass	4200KG
Molding cycle	10-15S
Molding	10 Pcs/mould(400×200×200/390×190×190 mm)
Capacity	10000Pcs/10 hour
Types of bricks can be made	390×240×190/390×190×190/390×115×190All kinds of moulds can be made by customers' drawings
Moving method	Automatically move and hydraulic steering
Excitation way	Three-dimensional box excitation
Raw material	Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Drawing for EBM10-22E Mobile Block Making Line

Batching machine PLD1200-3

Main specification and technical parameters
Length	11M
capacity	50T
Diameter	2.15M
Total weight	5T

Weigh bucket capacity (L)	1200
Productivity m3/h)	56
Batching precision	±1%
Max weighing capacity (kg)	3000
Number of material matching	3
Work loading height (mm)	3000
Feeding belt speed (m/s)	1
Power (kw)	12
Gross weight (kg)	4000
Demission (mm)	9000×2200×3500

Concrete Mixer JS750

Charging Capacity (L)		1000
Discharging Capacity (L)		750
Production Capacity (m3/h)		≥25
Max Aggregate Diameter(mm)		≤40/60
Cycle Time (s)		72
Stirring Vane	Rev Speed (r/min)	31
	Quantity	4×7
Stirring Motor	Model
	Power (KW)	25.5
Lifting Motor	Model
	Power (KW)	5.5
Pump Motor	Model
	Power (KW)	0.75
Size	Travel State	3230×2520×2880
	Operation State	5525×3100×5680
Total weight (Kg)		6500

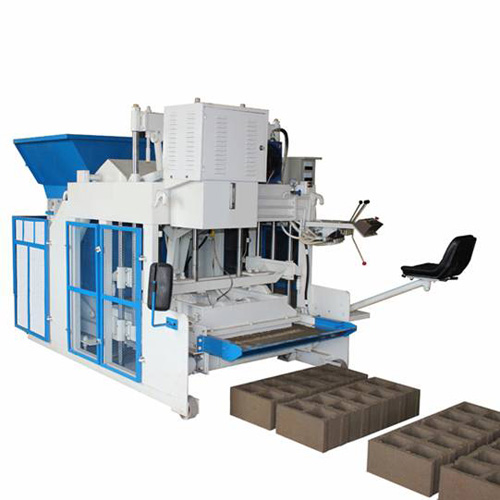

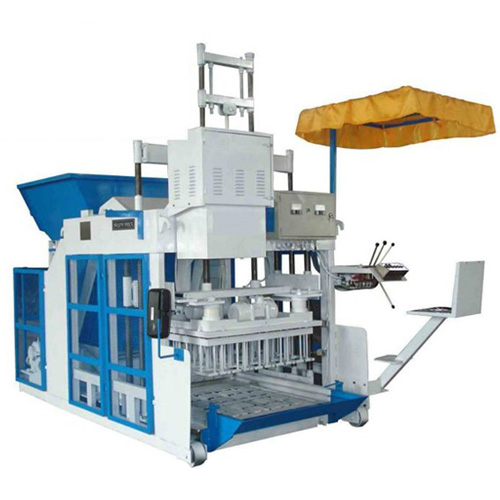

Mobile Brick Machine EBM10-22E

Main specification and technical parameters
Overall size	3300(L)×1800(W)×2300(H)mm
Shaping cycle	20-30 seconds
Pallet size	No need pallet
Vibration Force	55KN
Vibration style	molding vibration
Electricity	380V
Total weight	4800 KGS

Price list for EBM10-22E Mobile Block Making Line

1. Block pressing system-EBM10—22E brick machine
2. Transport system—SD10 Site Dumper with discharging hopper
3. Mixing system—batching plant
4. Block stacking system—forklift with clamp (suggest)

Items	Items-2	Specification	Unit	Qty	Total Value
Block Pressing System	Host Machine EBM10-22E	Hydraulic Station	set	1
		Material Feeder	set	1
		Control Panel	set	1
		Mold	set	1
		Walking Underpan	set	1
		Material Hopper	set	1
		Chair and Sunshade	set	1
		Spare Parts	list	1
Transporter	Site Dumper	SD10	Unit	1
Mixing System		CBP45 Batching Plant	set	1
			set	1

Note:

1. All kinds of mould can be made by customer's drawings
2. Delivery time: 30-45 days after deposit of sales contract
3. Payment Terms: 30% deposit after sales contract, 70% before shipment by T/T.
4. Quotation validity time: 15 days
5. All the parameters above just for reference, for they are updating all the time.
