Muck loader

Description

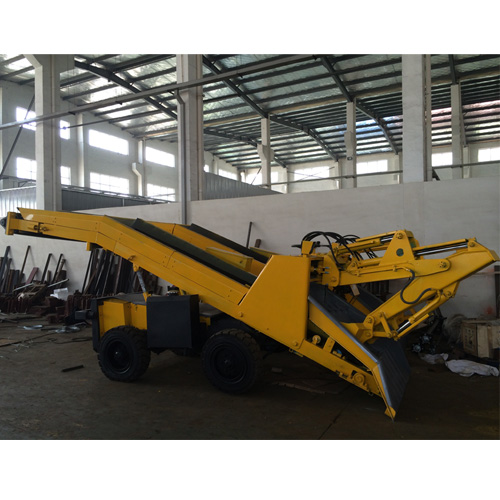

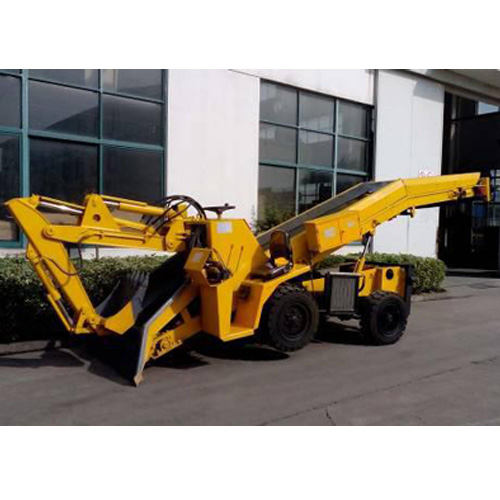

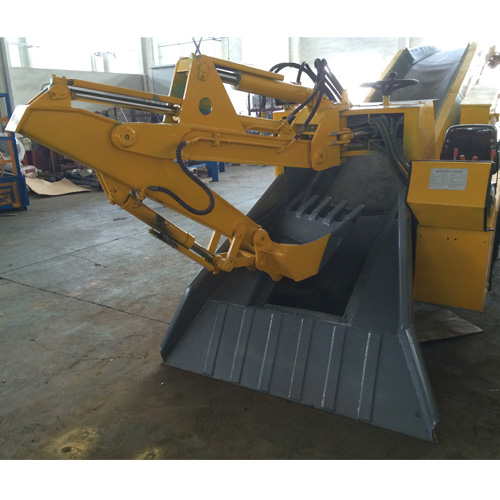

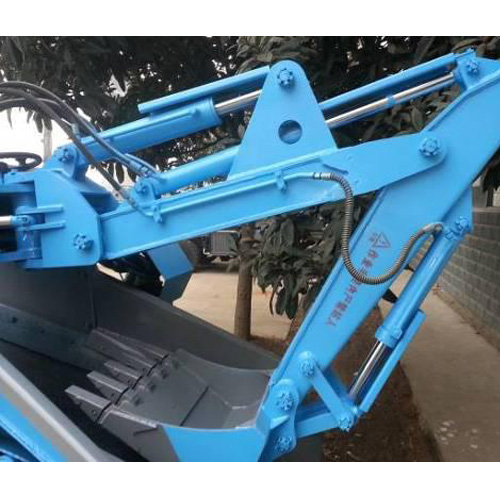

Wheeled mucking loader, connected by manipulator and conveyor, has the combined function of drossing and transportation. The machine adopts power-driven hydraulic control system which has the characteristics of safe and environment friendly, less energy consumption and high efficiency. Wheeled mucking loader, equipped with electromotor and diesel linkage hydraulic power system, has the advantages of convenient shifting, low noise and high power. The muck loader is the ideal equipment for mine and small-size tunnel.
TOPMAC is an ISO 9001 accredited muck loader supplier in China.

Application

The wheeled mucking loader is mainly used for gather and transport rubble from small production scale and narrow work space.

Parameter

Particulars	Units	Parameter
		ZWY-80/15T0
Length	mm	7500
Width		1700
Height		1700
Axle		1580
Wheel base		1470
Max. aggregate size		550×450
Min. clearance		190
Weight	kg	3600
Max. height of tip at full raise position	mm	2300
Max. loading height		1600-1800
Width of loading body of tipper		≤3000
Max. distance between the shovel to the loading hopper		1740
Max. raise height of shovel		2600
Power	KW	15
Max. rotating angle of shovel	(°)	73
Max. moving speed	km/h	2.5/1.4
Max. excavating force	KN	11.1
Loading capacity	T/h	70-140
Height from the driver’s head to the ground	mm	1800
Max. slope of the loading belt	(°)	24
Best size for the tipper loading body, 1.9m height, 3m length
