Mobile Concrete Mixing Pump

Model: CPM15D

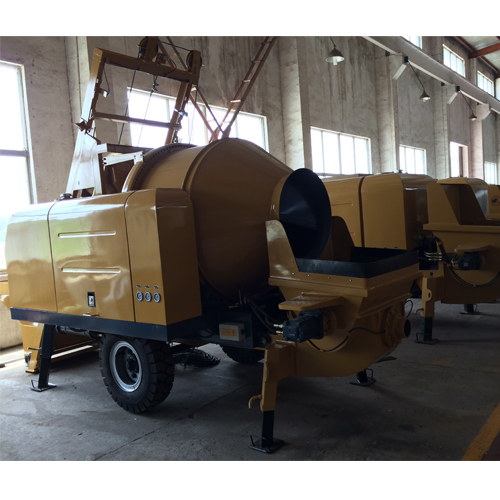

Description

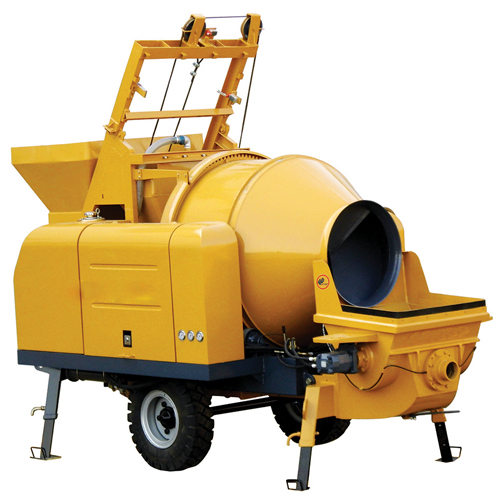

CPM15D mobile concrete mixing pump has agitation and transportation functions. The agitation system adopts self-fall type bi-pyramid to reverse discharging mechanism; the hydraulic system introduces double cylinder piston type, the electrical and hydraulic control and the S valve assignment form.

Main parts of the Concrete Mixer Pump

1. The main engine of the stirring concrete pump is composed of the hydraulic system, the electric system, the pump system, the mixing mechanism, the distributing valve, the running gear, the cowling, the rack, the transfer pipeline and so on.

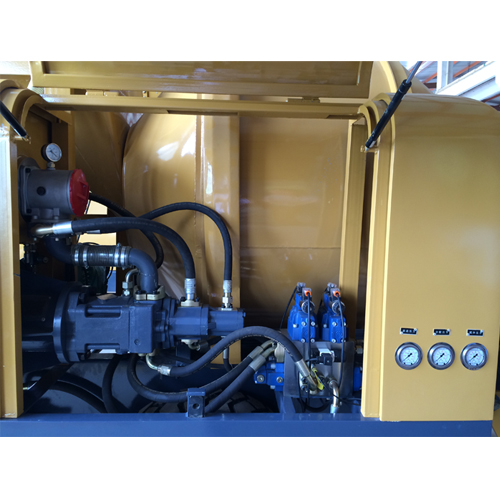

2. The hydraulic system of the mobile concrete mixing pump is composed of the main oil route system, the distributing valve oil system and the mixing oil system.
3. Main oil route system consists of oil filter, ram pump, electromagnetism distributing valve, electromagnetism overflow valve, check valve, main oil cylinder as well as pipeline appendix.
4. The distributing valve oil system includes oil filter, electromagnetism distributing valve, oil cylinder as well as pipeline appendix and so on.

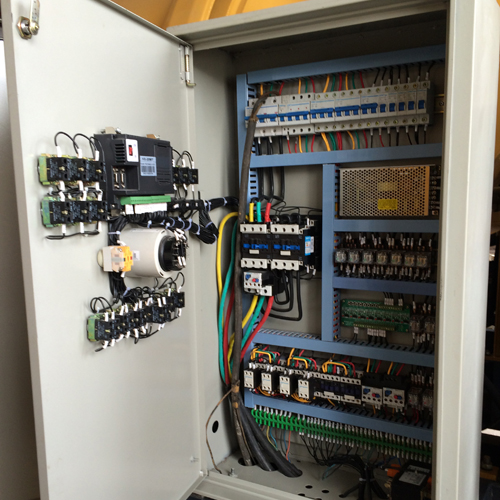

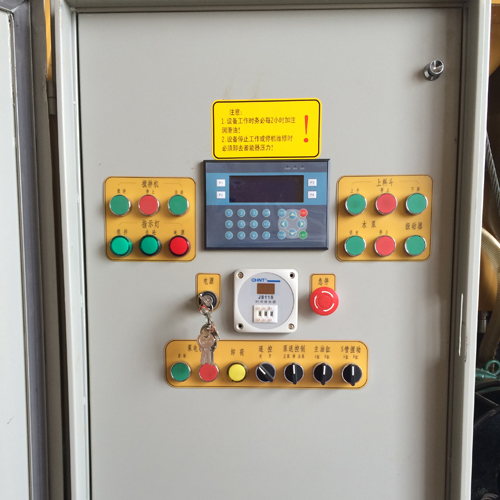

5. The electric system of the stirring concrete pump includes the electromotor, AC contact device, air switch, push-button switch.

Advantages

This mobile concrete mixing pump has the system to be stable and the control system is simple and convenient.

Features

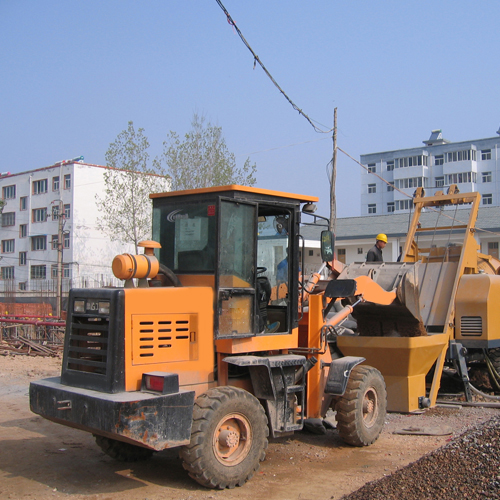

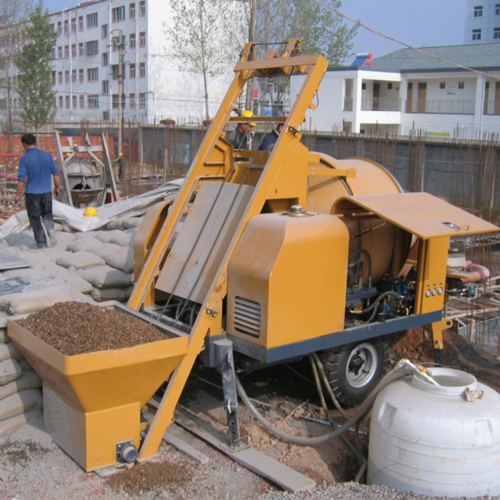

1. Mobile concrete mixing pump is applicable for the high-rise construction or long distance transportation of mortar, the foaming concretes and the small aggregate concretes, which facilitates the construction work. Mortar flows in the pipeline which will not cause environmental pollution. Concrete mixer pump has the high transport efficiency to deliver the motor to places where the other equipment can not reach.
2. Mobile concrete mixing pumps produce high quality concrete. It has low dust loading, low snapping back rate, low the failure rate, and low cost.

Operation and Precautions

1. Agitation system
(1) Concrete mixer pump adopts self-fall type bi-pyramid to reverse discharging mechanism; the production efficiency is high and the agitation quality is good.
(2)Stirs drum uses the gear transmission to create high transmission efficiency, low failure rate and simple maintenance.
2. Hydraulic system of Mobile Concrete Mixing Pump
(1) The operating valve applies the advanced S valve which has good leak-proof quality. The structure is simple and reliable. The eyeglasses board and the wear-resisting link are made of hard alloy, which is wearable and durable.
(2)The concrete mixer pump adopts electricity-hydraulic control, which is easy to operate.
(3)It is suitable to many kinds of mortar, like spraying mortar, wall surface mortar, ground mortar, small aggregate concretes and so on.

Main Specification

Item	Unit	Specification
Max. Actual Output	m3/h	15
Max. Theoretical Output	m3/h	30
Max. Outlet Pressure	Mpa	10
Distribution Valve Type		S Tube Valve
Concrete Cylinder Size	mm	φ160×1000
Main Oil Cylinder	mm	φ110/1000
Oil Tank Capacity	L	200
Inner Dia. of Delivery Pipe	mm	φ125
Power		45kw
Max. Dia. of Aggregates	mm	40
Towing Speed	km/h	≤8
Max. Horizontal Distance	m	200
Max. Vertical Distance	m	40
Mixer Model	RDCM350
Unmixed Capacity	L	560L
Mixed Capacity	L	350L
Drum Capacity	L	2210
Drum Thickness	mm	5
Drum Speed	rpm	15
Hopper Lifter	s	6
Loading Hopper		Mechanical Hoist Hopper
Mixing Time	s	45~60
Overall Size	mm	5300×2090×3600
Weight	kg	4000
