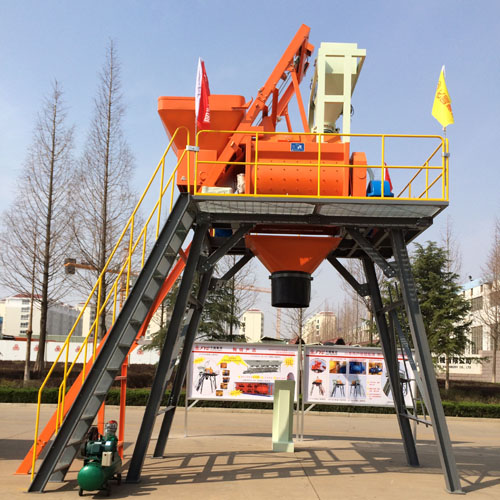

Twin Shaft Concrete Mixer
Main Specifications
|
|
JS750 | |||
| Total Power | 51．5 hp, 380V, 3- Phase 50 HZ | |||
| Main Motor | 40 hp | Hoist Motor | 10 hp | |
| Water Pumping Motor | 1．5 hp |
|
|
|
| Capacity (unmixed) | 1200 liter / 42.50 cuf | |||
| Capacity (mixed) | 750 liter / 26.55 cuf | |||
| Capacity per hour | 35 cum / 1236 cuf | |||
| Mixing time per batch | 70 sec. | |||
| Discharging Height | 1600mm | |||
| Dimension | 4950×36360×6530mm | |||
| Weight | 5500kg | |||
|
|
|
|
|
|
Shipping, Delivery & Maintenance
| 40’ container can be loaded with | 1 complete units |
| Delivery time | 3 weeks after confirmation of the order |
| Maintenance | |
| The mixer should be cleaned after work every day, kept lubricated at all points where grease caps have been provided every week. | |
