Walk Behind Double Drum Roller

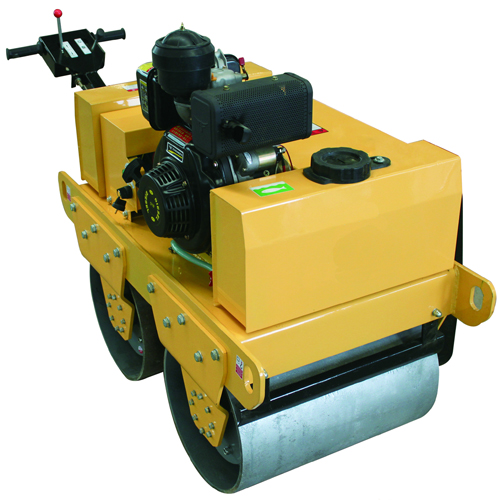

Walk Behind Double Drum Roller CR700

Application

Walk behind double drum roller is used for compaction of asphalt surface, compaction of gravel, sand and other projects.

Features

1. The machine can work in a small area because of the small operating radius.
2. Walk behind double drum roller CR700 adopts domestic famous diesel engine to ensure the quality, superior performance and easy start-up.
3. Walk behind double drum roller has variable speed by using SAUER hydraulic drive unit.
4. Handrails are flexible and suitable for workers who have different height to operate by using plane gear adjusting mechanism.
5. The road roller adopts international famous NSK bearing MITSUBOSHI triangle belt to ensure the work performance.
6. Topmac is an experienced construction compacting machinery manufacturer in China. Our products have gained the CE certification.

Parameter

Model	CR700
Travel Speed	0-4km/h	Water tank	50L
Climbing Capacity	30%	hydraulic oil tank	0.3L
Drive	Hydrostatic drive	Engine Model	CF178F
Vibration Control	Electromagnetic Clutch	Power	6.0HP
Static linear load	30/40N/cm	Steel Wheel Size	φ425X600mmX2
Nominal amplitude	0.7mm	Package Size	1450X900X1200mm
Vibration frequency	70HZ	Net Weight	700kg
Vibrating force	20KN	Starting Mode	manual operation/Electric

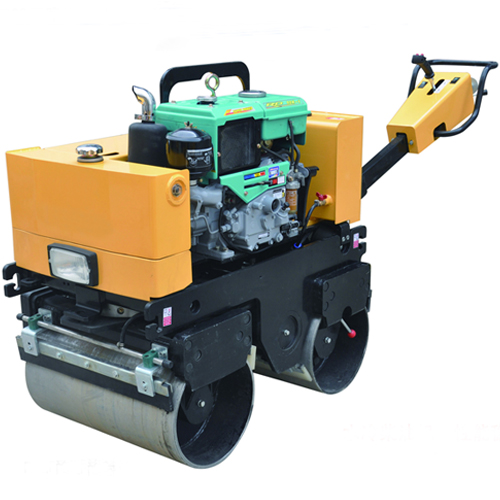

Walk Behind Double Drum Roller CR800

Description

This kind of road roller adopts GX160/GX270/GX390 HONDA engine, which has excellent performance, famous brand assurance, and infinitely variable speed. It is hydraulic double-way moving, which has high pulling torque and more stable. The Vibrating force is controlled by accelerator directly, which is easy to operate and move.
The characteristics of walk behind double drum roller include small volume, compact structure, comfortable and easier to transport and collect. It is mainly used in helping large-size road rollers with small scale pavement project, mending in compacting road, repairing of high-speed road, compacting of backfill, small parking lot and sports venues. It is perfect device in building road,
square for road and municipal department.

Features of Walk behind Double Drum Roller CR800

1. This kind of road roller adopts GX160/GX270/GX390 HONDA engine, which has excellent performance, famous brand quality assurance, superior performance and easy start-up.
2. Walk behind double drum roller has variable speed by using SAUER hydraulic drive unit.
3. Handrails are flexible and suitable for workers who have different height to operate by using plane gear adjusting mechanism.
4. The road roller adopts international famous NSK bearing MITSUBOSHI triangle belt to ensure the work performance.
Parameter

Model	CR800
Travel Speed	0-4km/h
Climbing Capacity	30%
Drive	hydraulic motor
Vibration Control	Electromagnetic Clutch
Static linear load	40/60KN/cm
Nominal amplitude	0.6mm
Vibration frequency	70HZ
Vibrating force	20KN
Water tank	26L
hydraulic oil tank	20L
Engine Model	90N water cooling diesel
Power	7.0HP
Steel Wheel Size	φ350X635X2
Package Size	1510X870X 1920
Net Weight	800KG
Starting Mode	manual operation/Electric
