Concrete Cutting Machine

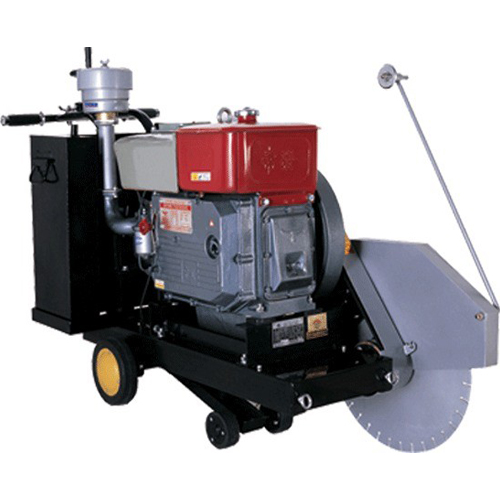

CC500 Asphalt Cutter Machine
Features
1. The machine has indicator scale for cutting depth.2. Concrete cutting machine is equipped with water tank and splash guard.
3. Air intake is located outside the dust zone above the water tank.
4. The pavement saw is the professional solution for construction work.
5. The sturdy design and powerful engine ensure quick and efficient cutting performance which has the cutting depth of up to 170.mm (6.7 inch)
6. Our company is a professional concrete finishing machine supplier in China. Our products have gained the CE certification.
Specification of Concrete Cutting Machine
| Model | CC500 | ||
| Picture |
|
||
| Engine | GX270 | GX390 | CF186 |
| Power | 9HP | 13HP | 9HP |
| Blade diameter | 400mm | 500mm | 500mm |
| Cutting depth | 150mm | 170mm | 170mm |
| Water tank capacity | 40L | 45L | 45L |
| Starting mode | manual operation | manual operation | manual operation/Electric |
| Packing size | 1450×1000×1100mm | 1450×1000×1100mm | 1450×1000×1100mm |
| Weight | 130kg | 135kg | 145kg |

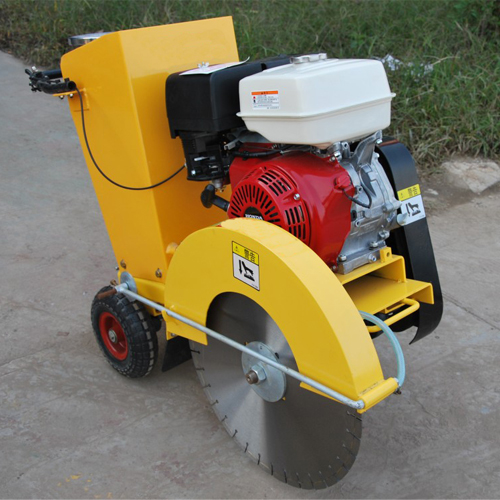

CC550 Asphalt Cutter Machine
Features
1. Concrete cutting machine (often known as Asphalt Road Cutter or Road Cutter) is a power tool used for cutting concrete, masonry, brick, asphalt, tile, and other solid materials.2. It can be a small manual operation-held concrete saw, a big walk-behind concrete cutter or other styles with gasoline or petrol engines.
3. Concrete cutting machine can also be powered by diesel, hydraulic pressure, pneumatic pressure or electric motors.
4. The machine adopts diamond cutter blades to cut concrete, asphalt, stone, etc.
Specification
| Model | CC550 | ||
| Picture |
|
||
| Engine | GX270 | GX390 | CF186 |
| Power | 9HP | 13HP | 9HP |
| Blade Diameter | 400mm | 500mm | 500mm |
| Cutting Depth | 150mm | 170mm | 170mm |
| Water Tank Capacity | 40L | 45L | 45L |
| Starting Mode | manual operation | manual operation | manual operation/Electric |
| Packing Size | 1450×1000×1100mm | 1450×1000×1100mm | 1450×1000×1100mm |
| Weight | 130kg | 135kg | 145kg |
