Manual Concrete Block Making Machine

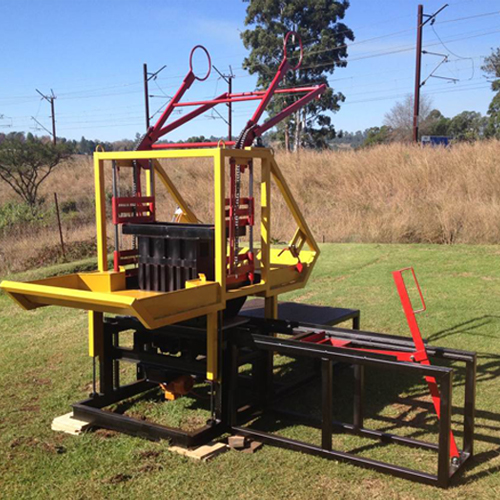

Manual Brick Molding Machine BM01

Description

This vibrator cum manual operated concrete block making machine (single) is a manual brick molding machine. Good concrete blocks with sharp edges can be produced with the use of power/vibrator. This machine can be fitted with a diesel vibrator, which is good for the use in the rural areas where there are frequent power outages. It is equipped with a 1.5 HP single phase, or 1 HP 3 phase electric vibrator, 1440 RPM and weighs about 500 Kgs.
Backed by robust design, these manual brick molding machines are specifically engineered to meet the requirements of construction industry.
The pressing operation is time controlled by single switch, which is operated for both pressing and returning strokes to ensure uniform pressure on all sides of paver block. Additionally, they have a superior vibration and pressing systems for maximum compaction and strength.

Application of Manual Operated Concrete Block Making Machine

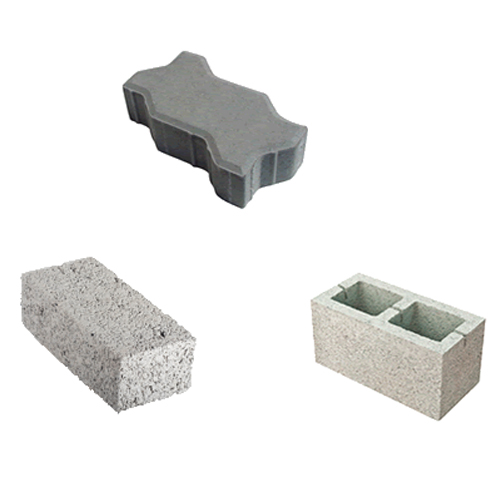

Model BM01 is an ideal manual brick molding machine for the block industries. It can manufacture single 9” hollow blocks, and paving stones, etc.

Production in 8 Hours

9” Hollow Blocks	500 pcs.	6” hollow blocks	500 pcs.
Paving Stone	30 m2	Necessary employment	04 persons

Features

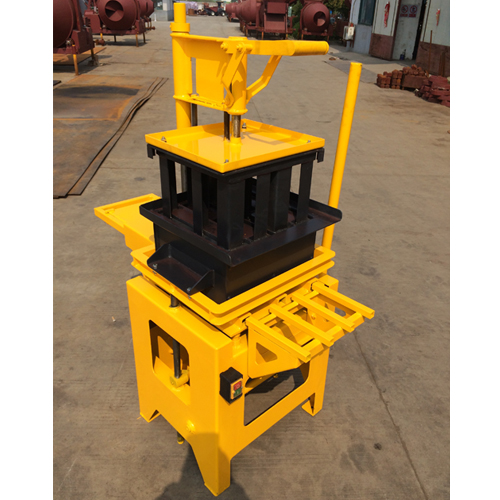

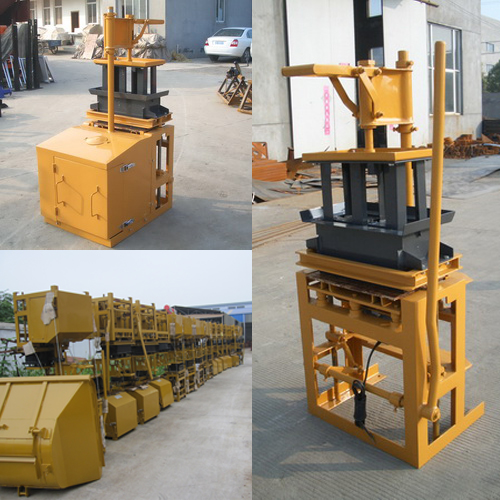

1. It is a stand type high density manual operated block making machine versatile to shift to any working site to cast blocks on wooden or steel pallet which is inserted on both sides.

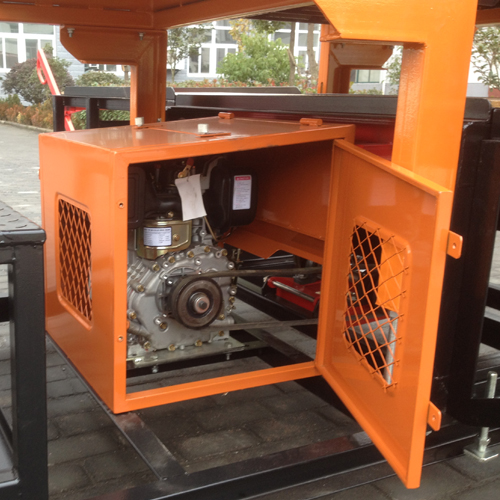

2. It has a top pressing ram operated by the toggle mechanism. Bottom plate is equipped with efficient light weight vibrating motor, or diesel engine powered eccentric vibrator.

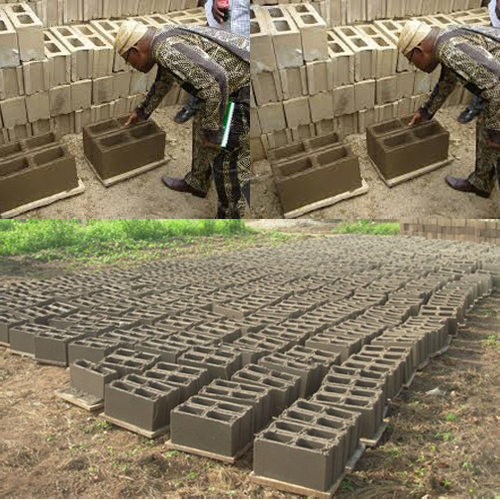

3. By pressing the operating lever, the mould leaves the blocks on the pallet. The blocks with pallet is removed and kept for wet drying manually.
4. Any shape of interlocking pavement blocks can be produced by manual brick molding machine with different colors.
5. Salient features of the machine include simple operation, high efficiency, and durability. It can be customized as per the specification requirements of our clients

Safe Working Conditions

Reliable Operations and Better Durability Standards

Main Specifications of Manual Operated Concrete Block Making Machine

Model	BM01	BM01
Power	1.4 hp	7 hp
Power Source	Electric motor	Diesel engine
Dimension	720×450×1520 mm	720×450×1560 mm
Weight	86 kg	92 kg

Shipping, Delivery and Maintenance

20’ container can be loaded with	50 units – 2 decks
Delivery time	3 weeks after confirmation of the order
Maintenance
The machine should be cleaned and kept lubricated at all points where grease caps have been provided, and tighten all the connecting bolts after the working shift. The Engine oil is suggested to be changed every 70 operating hours.

All the specifications above are only for your reference, which will be changed without notice.

Manual Brick Molding Machine BM02

Description

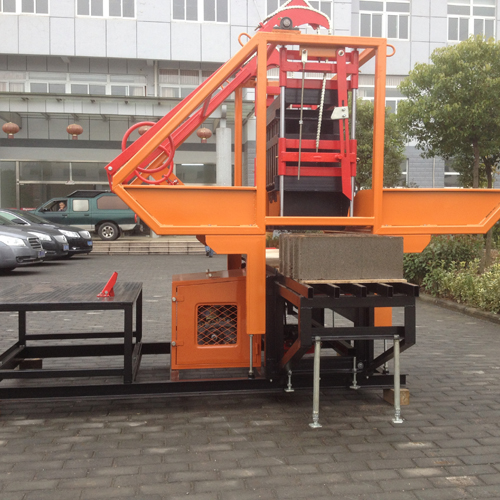

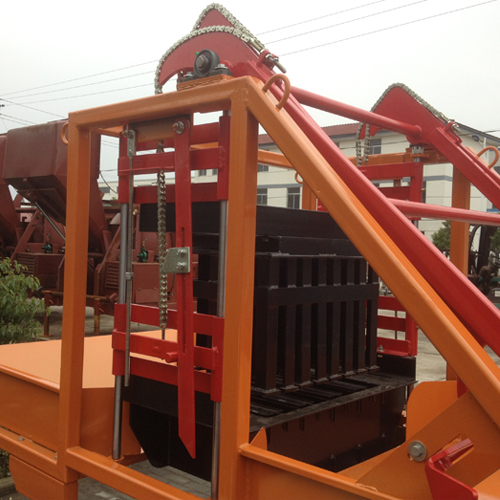

BM02 is a good option for clients that are setting up a permanent blockyard. The manual operated concrete block making machine comes with a hydraulic diesel motor and two compression chambers. Because of the two chambers, the output of this machine is doubled to 3,000 blocks per shift.

Advantages of Manual Brick Molding Machine BM02

1. Do not use the clay as raw material to avoid destroying the field.
2. Making use of three industrial wastes to change wastes into valuables.
3. Not using fire to bake blocks and not building kiln to save energy source and field.
4. No waste gases to pollute the environment.
5. Production process is simple, they can be made everywhere.
6. Low investment and high return. Customers can profit in half a year after investing.
7. The block can be produced all the year round.
8. Easy and convenient to use in construction.
9. Technical criteria is better than those of red brick and green brick.
10. Electric or diesel powered

Parameter

Model	BM02
Type	Stationary
Power Source	0.75hp Electrical Motor(380v or 220v)
	6hp Diesel Engine
	5hp Petrol Engine
No Of Per Stroke	2 Pcs
Capacity Of 8 Hour	450×230×230/500pcs
	450×150×230/750pcs
	450×100×230/1000pcs
Cycle	85s
Pallet Size	490×520×20mm
Overall Size	L×H×W:1318×760×1790
Weight	220kg
Load Plan	20GP/26 PCS
	40HQ/108PCS

Manual Brick Molding Machine BB03M

Description

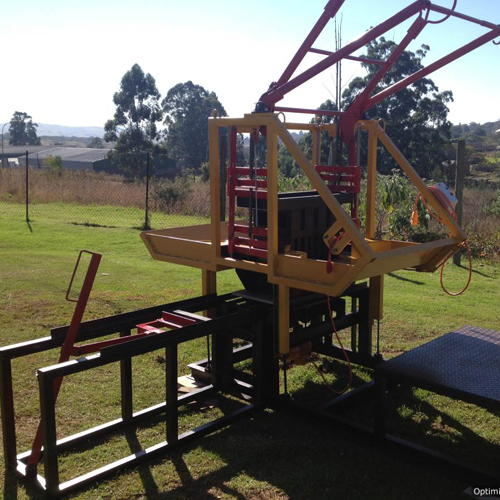

This machine produces conventional pavers, bricks and blocks and is an ideal setup for blockyards. The blocks are produced on wooden pallets, cured for 7 days and then ready for use.

Features

1. It produces a range of bricks, blocks and pavers.
2. Manual operated concrete block making machine has the daily output of 5000 interlocking pavers.
4. The machine is also available in manual version.
5. It can produce high quality pavers.

Main Specifications

Model	BB03M(Diesel)	BB03M( Electrical Motor)
Type	Egg-laying	Egg-laying
Rated time for per cycle (s)	60	60
Size of block pallet (mm)	/	/
Power source	KM178F diesel engine	single phase 220v
		3 phase 380v
Total power (kw)	6	4
Total weight (kg)	1500	1300
Rard Space	1500 square meter	1500 square meter

Configuration

Model	PM350	picture
Capacity	350L
Drum rotating speed	20r.p.m
Motor model	Y112M-4
Power	5.5kw
Rotational speed	1440r/min
weight	4500kg

Productivity

Size	Dimensions	Per Stroke	Output or 10 hour
8" Hollow Block( L×W×H)	390×190×190	3	1600
6" Hollow Block ( L×W×H)	390×140×190	4	2200
4"Hollow Block ( L×W×H)	390×90×190	6	3300
Solid Brick ( L×W×H)	220×110×70	16	8900
Maxi 140 ( L×W×H)	290×140×90	8	3800
Retaining Block ( L×W×H)	290×90×190	2	450
Interlocking Paver	200×100×50	10	5000
	200×100×60	10	5000
	200×100×80	10	5000
Rectangular Pave	200×100×50	10	5000
	200×100×60	10	5000
	200×100×80	10	5000
Anticipated production rate - 65 drops per hour Replacable liner plates on base of mixer Requirments Recommended 10 to 12 workers Yard Space 1500 m2 - Level Concrete Slab - 6m X 6m (36m3)
