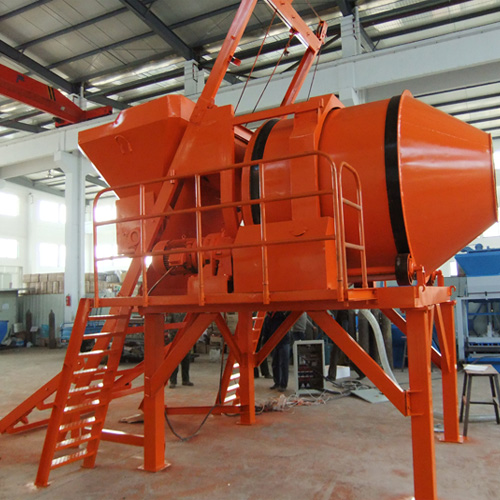

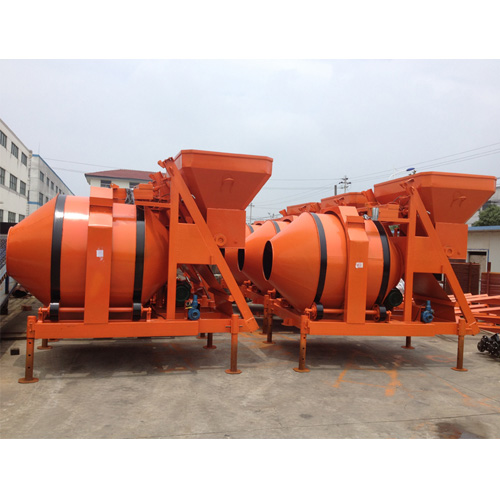

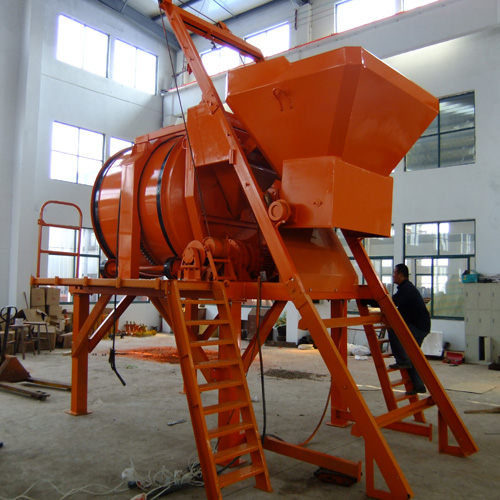

Electric Reverse Drum Mixer
Parameter
| Model | RDCM350-11EHS |
| Drum Volume | 2210L |
| Capacity of loading | 560L |
| Capacity of discharging | 350L |
| Drum Thickness(mm) | 5mm |
| Hopper Thickness(mm) | 3mm |
| Output | 10-14 cubic meter/hour |
| Drum rotating speed | 13r.p.m |
| Max.towing speed | 20km/h |
| Power | 5.5kw |
| Power source | Electric motor, 3-phase, 380v, 50Hz or 3-Phase, 220v,60hz |
| Size(L×W×H) | 3250×2240×3200mm |
| Total weight | 1840kg |
| Hopper lifting model | Wire rope slide hoisting hopper |
| Towing wheels | Two wheels or Four wheels |
Container Loading Plan
| 20’ container can be loaded with | 3 units |
| 40’GP container can be loaded with | 6 units |
