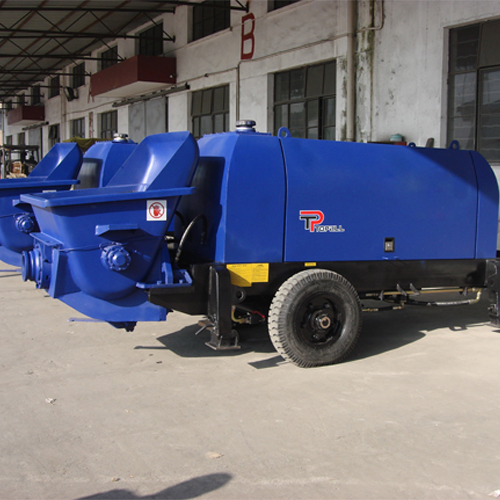

Trailer Mounted Concrete Pump
Concrete Mixer Pump CP30
| Model | CP30 |
| Max.theoretical conveying capacity(m³/h) | 30/18 |
| Max.pumping pressure Mpa | 10/6 |
| Distributing valve form | S-VALVE |
| Main oil pump | K3VG112 |
| Main oil cylinder diameter/stroke(mm) | ￠110/1000 |
| Concrete cylinder diameter/stroke(mm) | ￠150×1000 |
| Motor power(kw) | 55 |
| Motor model | Y2-250M-4-55kw-B35 |
| Oil tank volume(L) | 350 |
| Material feeding height(mm) | 1150 |
| Material outlet diameter(mm) | ￠125 |
| Hopper volume(m³) | 0.4 |
| Max. aggregate diameter(mm) | Cobble 30,Detritus 25 |
| Overall weight(kg) | 3000 |
| Overall dimension(mm) | 4320×1700×1850 |
