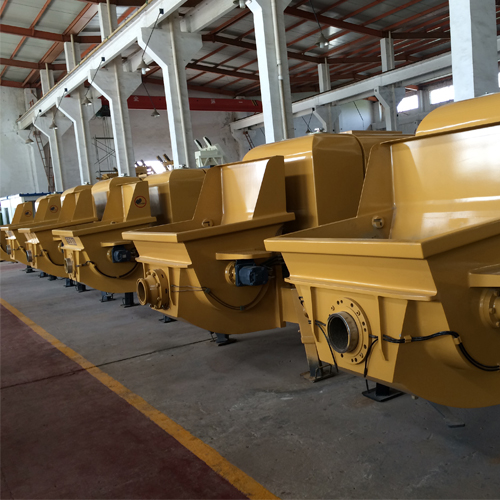

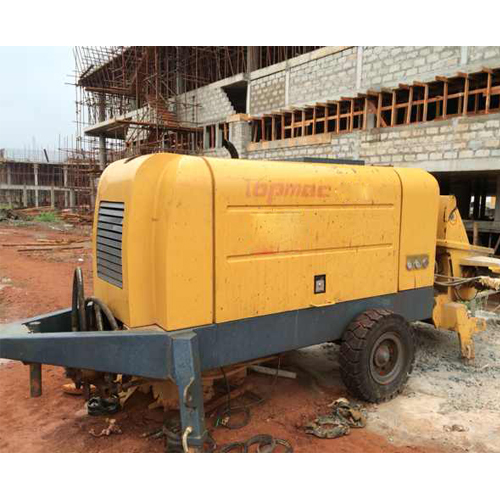

Trailer Mounted Concrete Pump
Concrete Mixer Pump CP40D
|
Overall Performance
|
Description | Unit | Parameters |
| Max theoretical conveying capacity | m3/h | 40/24 | |
| Max theoretical conveying pressure | Mpa | 10/6 | |
| Distributing valve form | S-VALVE | ||
| Concrete cylinder diameter× stroke mmspecification :diameter×travel | mm | φ160×1000 | |
| Hopper volume | m3 | 0.4 | |
| Material outlet diameter | mm | φ125 | |
| Material feeding heigh | mm | 1150 | |
|

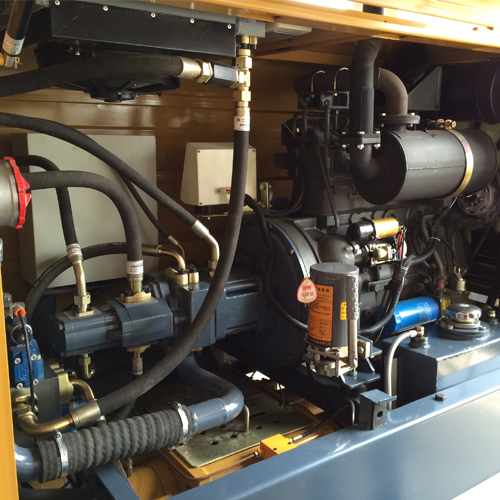

Power System
|
Model of diesel engine | WP4G95E221 | |
| Diesel engine power | kw | 70 | |
| Model of main oil pump | K3VG112 | ||
| Diameter of main oil cylinder× diameter×stroke | mm | φ110×φ70×1000 | |
| Diameter of swing oil cylinder | mm | φ63 | |
|
Hydraulic System
|
Hydraulic oil circuit type | Open circuit | |
| Oil pressure of pumping system(set valve of safely valve) | Mpa | 20 | |
| Oil pressure of distributing system(set valve of safely valve) | Mpa | 13 | |
| Oil pressure of mixing system(set valve of safely valve) | Mpa | 11 | |
|
Other Parameters
|
Diesel engine power of radiator | W | 100 |
| Rotary speed fan | r/min | 3000 | |
| Allowable max. aggregate size | mm | Cobble40,Detritus30 | |
| Inner diameter of concrete conveying tube | mm | φ80/φ100 | |
| Overall dimension (L×W×H) | mm | 4320×1800×2000 | |
| Overall weigh | kg | 3200 | |
| Trailing speed | km/h | <8 |
