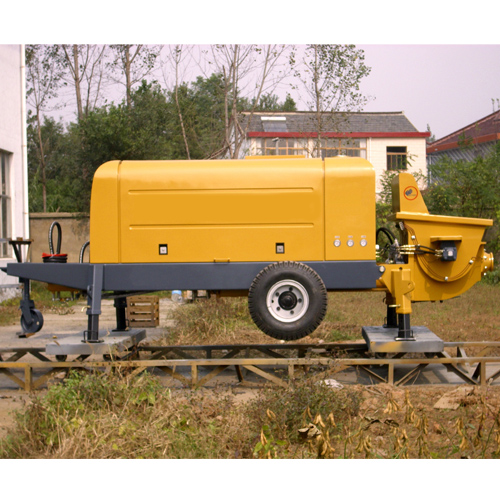

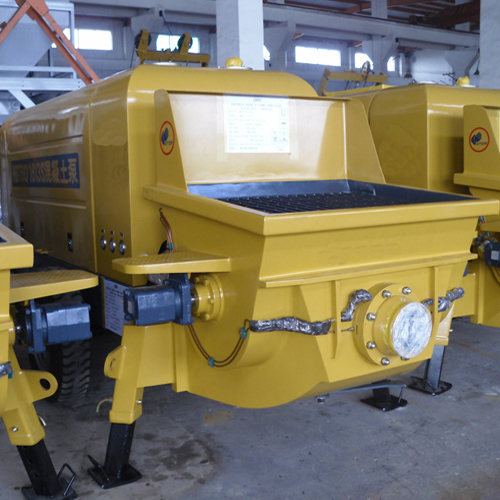

Trailer Mounted Concrete Pump
Concrete Mixer Pump CP60
| Name model | CP60 |
| Maximum theoretical throughput m3/h | 65/38 |
| Maximum pumping pressure Mpa | 13.5/B |
| Distributing form | S tube |
| Main punp | A11VLO190 |
| Main cylinder cylinder size/trip mm | φ125/1600 |
| Concrete cylinder size/trip mm | φ200/1600 |
| Motor power KW | 90 |
| Motor model | Y2-280M-4 |
| Tank volume L | 650 |
| Feeding height mm | 1350 |
| Discharging caliber mm | φ180 |
| Hopper volume m3 | 0.65 |
| Maximum allowable aggregate size mm | Pebble phi 50 / gravel phi 40 |
| Complete-product quality kg | 6000 |
| Shape dimension mm (long x width x high) | 6230×2210×2050 |
