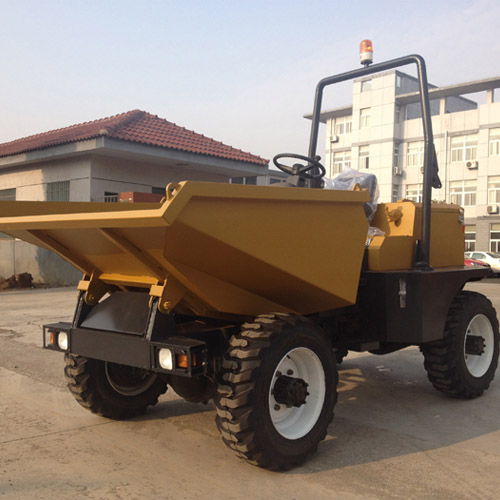

Site Dumper SD20
Site Dumper SD20/4WD
|
|
SD20/4WD |
| Payload | 2000kg |
| Diesel Engine | Changchai ZN385Q Water Cooling Diesel Three cylinders, Water-cooling system with radiator |
| Rated Power | 30hp/2600 rpm |
| Water Capacity | 1150 ltr (41 cuf) |
| Struck Capacity | 1500 ltr (53 cuf) |
| Heaped Capacity | 2000 ltr (70 cuf) |
| Min.Out Turning Circle Radius | 4.3 m |
| Min. Ground Clearance | 248mm |
| Discharging Height | 460mm |
| Tipping System | Hydraulic |
| Engine Starting | Electric |
| Electric Battery | 12 V, 150 amp. |
| Driver Awning | optional |
| Road Speed | 3.85 ~27.2 km/h |
| Reverse Speed | 3.48 km/h |
| Transmission | 3 forward & 3 reverse gear |
| Clutch | Constant-contact, single disc, dry clutch |
| Chassis | Angling Frame |
| Driving Axle | 4×4 |
| Dimension | 3800×1600×1800mm |
| Unladed Weight | 2180kg |
