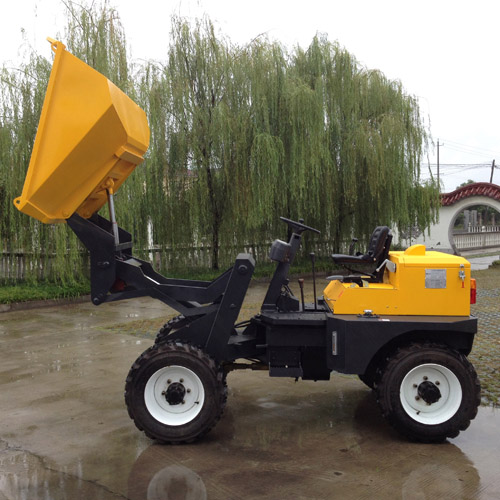

Site Dumper SD10
Site Dumper SD10-13DH
| Model | SD10-13DH |
| Payload | 1000kg |
| Diesel Engine | Single cylinder, Water-cooling system with radiator |
| Rated Power | 18 hp/2200 rpm |
| Water capacity | 317 ltr (11.2 cuf) |
| Struck capacity | 467 ltr (16.5 cuf) |
| Heaped capacity | 765 ltr (27 cuf) |
| Min.Out turning circle Radius | 4 m |
| Min. Ground Clearance | 200mm |
| Discharging Height | 1650mm |
| Tipping System | Hydraulic |
| Engine starting | Manual and Electric |
| Electric Battery | 12 V, 75 amp. |
| Driver awning | Yes |
| Road speed | 5.8 ~23 km/h |
| Reverse speed | 4.7 km/h |
| Transmission | 4 forward & 1 reverse gear |
| Chassis | Articulated Frame |
| Driving axle | 4×4 |
| Clutch | Constant-contact, Single disc, dry clutch |
| Dimension | 3200×1600×1700mm |
