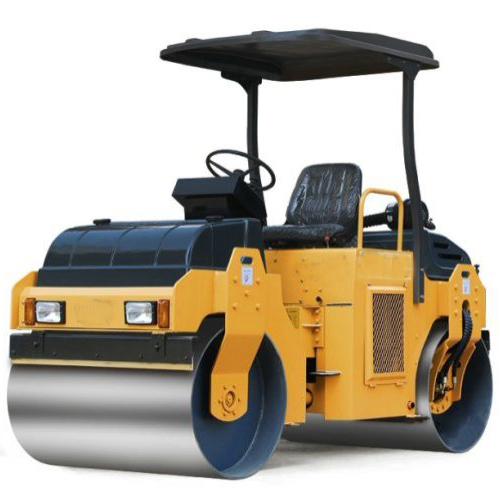

Tandem Vibratory Roller
Main Specifications
| Operating weight(kg) | 3000 |
| Diameter of vibration drum(mm) | 760 |
| Rolling width(mm) | 1200 |
| Static linear pressure(N/cm) | 135 |
| Centrifugal force(kN) | 32 |
| Vibration frequency(Hz) | 50 |
| Theoratical amplitude of vibration(mm) | 0.62 |
| Moving speed Range Ι(km/h) | 0-2.5 |
| Moving speed Range П(km/h) | 0-7.2 |
| Gradeability | 30% |
| Engine model(CHANGCHAI) | N385Q |
| Rated speed(r/min) | 2400 |
| Rater power(kW) | 21 |
| Overall dimensions: LWH(mm) | 2940×1300×2400 |
