Building Hoist

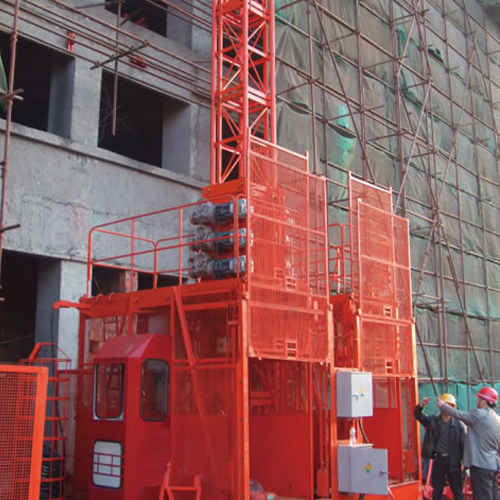

Building Hoist SC200

Name			Unit	Parameters
Height			m	300
Rated Loading Capacity			kg	2000/2000
Max. Loading Worker Number			Piece	September 9
Boom Lift Weight			kg	≤200
Lifting Speed			m/min	33
Electrol Motor		Model		YZEJ132M-4
		Power	kw	11×3/11×3
				15×2/15×2
Speed Limiter		Model		SAJ40-1.2A
		Rated Tripping Speed	m/s	1.2
		Rated Automatic Load	kn	40
		Type		Gradual
Reducer		Model		TU65/TU65T
		Center Distance	mm	125
		Speed Ratio		1:16
		BRAKING Distance	m	0.3~1.2
Mast Section Dimension			mm	650×650×1508
				800×800×1508
Crane Cage Inner Net Dimension			m	3.0×1.3×2.2
				3.2×1.5×2.2
Guardrail Dimension			m	5.53×3.42×1.82
				5.93×3.62×1.82
Free End Height of The Guide Rail Frame			m	9
Direct Attached Frame	Installing Interval		m/set	6~9
	Distance Bwtween Two Embedded Parts		mm	1488
	Installing Distance between Guide Rail Frame Center and Building		mm	2800~3200

Remark: if the Height of Construction is higher than 120m, you should choose strengthen mast sectionand cable Pulley
