Simple Semi-Automatic/ Automatic Block Production Line QT10-15

Introduction

Simple automatic block production line consists of two systems: batching and mixing system, block forming and stacker system. All equipments needed for the block production line installation are PL1200 batching machine, JS750 compulsive mixer, QT10-15 block making machine, and stack machine.

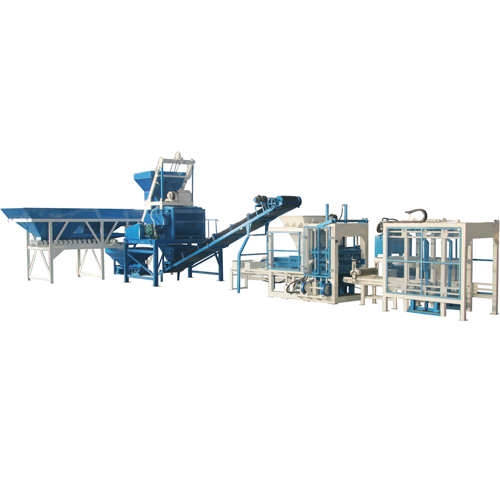

Drawing of the Block Production Line

1. PL1200 Batching Machine

	1	Volume of Scale hopper	1200L
	2	Volume of Store hopper	2500L×3
	3	Power of motor (kw)	3x4
	4	Productivity (m3/h)	56
	5	Work Cyc (S)	55
	6	measurement accuracy	<2%
	7	Specification ( Lx Wx H) (mm)	8400x2200x2600
	8	Weight (kg)	3800

2. JS750 Compulsive Mixer

	1	Volume of Input Material	1200L
	2	Volume of Output Material	750L
	3	Productivity (m3/h)	>=37.5
	4	Maximum Grain Size of Material (mm)	80/60
	6	Power of mixing Motor (kw)	30
	7	Power of Windlass Motor (kw)	7.5
	8	Power of water pump (kw)	1.5
	9	The upgrade speed of hopper (m/s)	0.3
	10	Specification ( Lx Wx H) (mm) Work fettle	5930x2250x4960
	11	Weight (kg)	7000

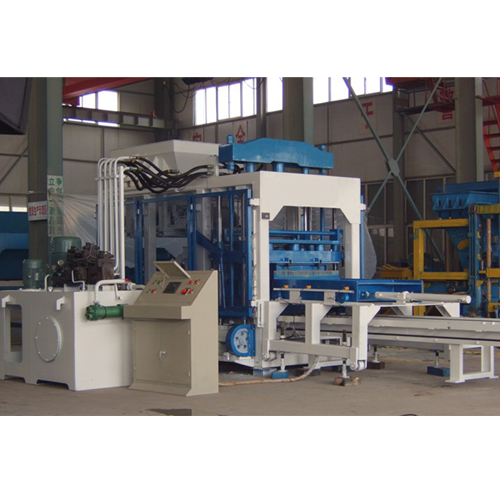

3. QT10-15 Block Making Machine

QT 10-15 automatic block making machine has the production output of 19200 blocks (400 mm × 200 mm × 200 mm) for one day (8 working hours). It makes use of sand, stone, cement, fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes to produce different products. This block making machine is quite suitable for producing various types of concrete blocks, paving stones, slope blocks, hollow blocks, interlock blocks, grass blocks and other sorts of blocks. The automatic block machine is specially designed for customers who need high quality, large capacity and superior intensity concrete blocks.

Advantages

1. Our machines adopt the most advanced feeding technology. When the feeding box reaches the place above the mould, materials in the box will be sent to the mould box fast and uniformly. Our concrete block making machines ensure the weight error rate of finished products at about 15% and the strength error rate keeps about 15%.
2. QT 10-15 automatic block machine adopts new vibration technology to greatly improve the production efficiency and increase about 20% than domestic similar machines.
3. It is installed with high-efficient and super strong vibration system to realize computer control for flow pressure of the hydraulic system. The concrete block machine also greatly improves the product density and production efficiency.
4. This automatic block making machine is configured with PLC control and human-machine interface dialogue system. It is easy to analyze fault diagnosis and ensure the best operation effect.
5. It is fitted with special hydraulic loading unit. We can easily realize mass and automatic production, saving a great deal of human power, maintenance cost and circulating fund investment.
6. Our company is a professional manufacturer of concrete block machines in China. Our products have gained the CE certification.

Parameters

Cycle Time (s)	Pallet Size (mm)	Power (kw)	Weight(Kg)	Machine Specification(mm)
12—18	1080x850x30	36.25	13800	7200x2290x2825

Theoretical Output Table

Type	specification (mm)	No./pallet	Block/hour	Block/8hours	Remark
Block	400×200×200	10	2400	19200
Solid brick	240×115×75	33	7920	63360
Ground brick	200×100×60	31	5580	44640

4. Color feeding device (Used for surface of pavers)	5.Belt conveyor (transport mixed material to block making machine)

6. Stack machine	7. Control unit	8.Mould

NOTE

One machine can make block, hollow block, solid brick, interlock paver, and kerbstone by changing moulds.
Main raw materials: sand, cement, small stone, fly ash.
Materials ratio: sand: cement: small stone: fly ash=50%:12%:20%:18%
