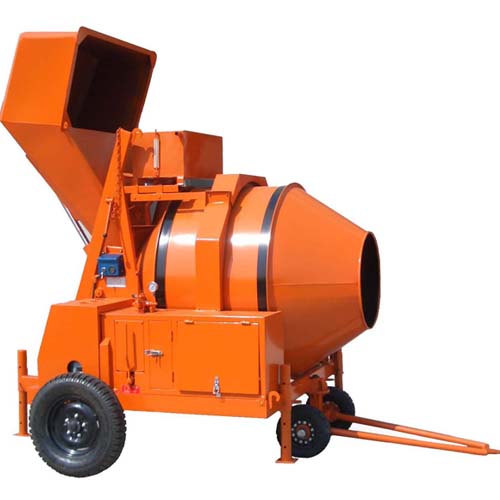

Diesel Reverse Drum Mixer
Parameter
| Model | RDCM350-11/13DHA/B |
| Drum Volume | 2210L |
| Capacity of loading | 560L |
| Capacity of discharging | 350L |
| Drum Thickness(mm) | 5mm |
| Hopper Thickness(mm) | 3mm |
| Capacity of water tank | 110L |
| Output | 10-14 cubic meter/hour |
| Drum rotating speed | 13r.p.m |
| Max.towing speed | 20km/h |
| Power | 11kw/13kw |
| Power source | Diesel engine,single cylinder,water-cooled with battery starter |
| Size(L×W×H) | 3250×2240×3200mm |
| Total weight | 1790/1840kg |
| Hopper lifting model | Hydraulic tipping hopper |
| Towing Wheel | Two wheels or Four wheels |
Container Loading Plan
| 20’ container can be loaded with | 3 units |
| 40’GP container can be loaded with | 6 units |
