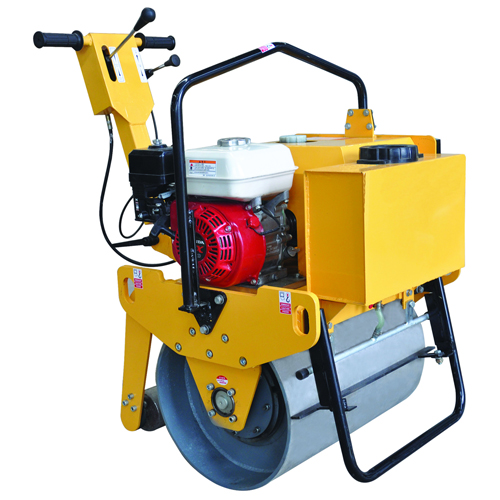

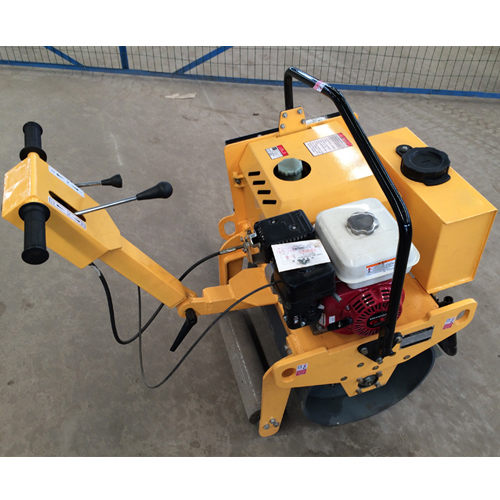

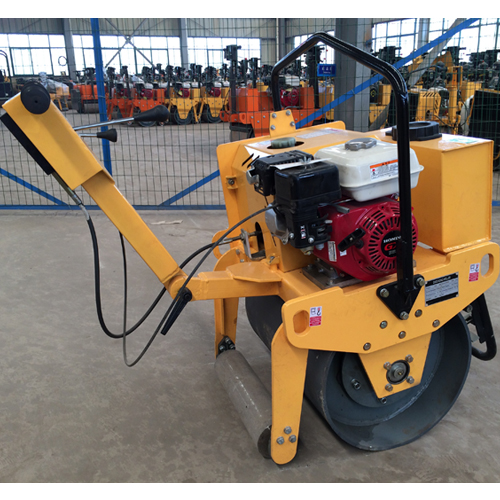

Walk Behind Single Drum Roller

Description

Walk behind single drum (gasoline) road roller is used for compaction of asphalt surface, compaction of gravel, sand and other projects.

Advantages

1. Honda engine;
2. Imported hydraulic drive system;
3. NSK bearing, MITSUBOSHI V-belt;
4. Topmac is an experienced road roller supplier in China. Our products have gained the CE certification.

Features

1. The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to planish the lawn and playground.
3. Walk behind single drum road roller adopts famous brand engine with excellent performance and it is easy to start-up.
4. The roller is equipped with famous brand variable pump and fixed displacement motor, which is easy to change direction
5. The machine adopts adjustable height mechanism of handrail to maintain easy transportation.
6. Walk behind single drum road roller applies NSK bearing and MITSUBOSHI V-belt.
7. Electromagnetism clutch controlling vibration is easy to operate.
8. The machine is efficient and convenient by using hydraulic system controlling steering gear.
9. It has the advantage of anti-rust, anti-corrosion and good-looking by using treated plastic.

Main Specifications

Model	CR300
Travel Speed	0-4km/h
Climbing Capacity	30%
Drive	Hydrostatic Drive
Vibration Control	Automatic Clutch
Static linear load	45N/cm
Nominal amplitude	0.6mm
Vibration frequency	70HZ
Vibrating force	15KN
Water tank	18L
hydraulic oil tank	2L
Engine Model	HONDA GX160
Power	5.5HP
Steel Wheel Size	φ425X600
Package Size	1100X1000X1200
Net Weight	300KG
Starting Mode	manual operation
