Site Dumper SD30

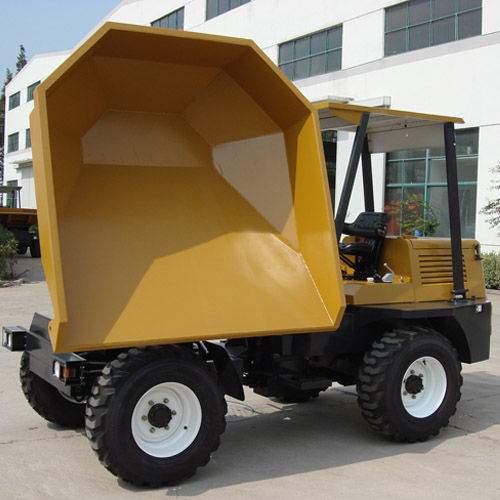

Site Dumper SD30
| Model | SD30 |
| Payload | 3000kg |
| Diesel Engine | Deutz/khd F3L912 Direct Injection three cylinders , Air-cooling system, Made in china . |
| Rated Power | 38kw/50hp/2500rpm |
| Water Capacity | 1150 ltr (41 cuf) |
| Struck Capacity | 1500 ltr (53 cuf) |
| Heaped Capacity | 2000 ltr (70 cuf) |
| Min.Out Turning Circle Radius | 4.25 m |
| Min. Ground Clearance | 248mm |
| Loading/Discharging Height | 1420mm/460mm |
| Tipping System | Hydraulic |
| Wheel System | Hydraulic |
| Engine Starting | Electric |
| Electric Battery | 12 V, 150 amp. |
| Road Speed | 3.85 ~27.2 km/h |
| Reverse Speed | 3.48 km/h |
| Transmission | 5 forward & 5 reverse gear and synchroshifter |
| Clutch | Constant-contact, single disc, dry clutch |
| Chassis | Angling Frame |
| Driving Axle | 4×4 |
| Dimension | 3900×1794×2600mm |
| Unladed Weight | 2500kg |
| Model | SD30S | ||
| Load Capacity(kg) | 3000 | ||
| Unloading System | Frontal Hydraulic | ||
| Chassis | Angling Frame | ||
| Hopper Capacities(L) | Water | 1150 ltr (41 cuf) | |
| Levelled | 1500 ltr (53 cuf) | ||
| Heaped | 2000 ltr (70 cuf) | ||
| Engine | Diesel | DEUTZ F3L912 | |
| Power(kw/hp) | 38kw/50hp/2500rpm | ||
| N°of Cylinders | 3 | ||
| Cooling System | Air Cooling | ||
| Drive | 4×4 System | ||
| Transmission | Mechanical, with 4 forward geras and 4 Reverse and synchroshifter | ||
| Cluth | Dry Single-disc φ254mm Constant-contact, | ||
| Engine Starting System | Electric | ||
| Speed (Max.)(km/h) | 27.2 | ||
| Unladen Weigh(kg) | 3000 | ||
|
Gradient Negotiable (with full load) |
35% | ||
| Hydrauic Circuit | Gear Pump of 10.6cc | ||
| Working Pressure 160 bar | |||
| Tire | Front | 12-16.5(12 PR) | |
| Rear | 12-16.5(12 PR) | ||
| Externalturning circle(mm) | 4500 | ||
| Steering | Hydraulic, working pressure 70 bar | ||
| Tank Capacity | Fuel | 50 Liter | |
| Hydraulic Fluid | 50 Liter | ||
| Brake | Fornt and Rear Hydraulic Operation | ||
|

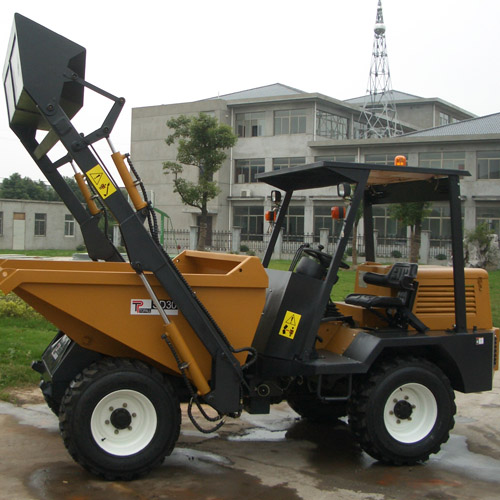

Self-Loading Shovel |
Volumetric Capacity | 250L | |
| Load Capacity | 450kg | ||
| Loading Plan | 1 Unit /20gp | ||
| 2 Unit/40HQ | |||

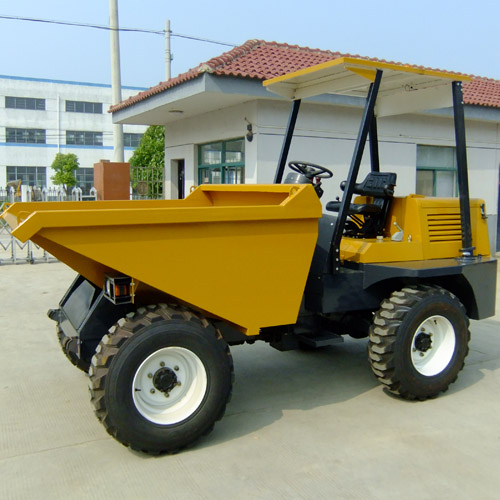

| Model | SD30R(FJ30R) | |
| Payload(kg) | 3000 | |
| Capacity of bucket(m3) | 1.5 | |
| Drive type | 4×4 | |
| Max.speed(km/h) | 25/28 | |
| Grade ability(%) | 36 | |
| Min.turning radius(m) | ≤4.5 | |
| Min ground clearance(mm) | ≥248 | |
| Tyres | front wheel(mm) | 12-16.5 |
| rear wheel(mm) | 12-16.5 | |
| Clutch | Constant-contact,single-disc,dry clutch | |
| Gear box | Five forward speeds and Five reverse speed and Synchro | |
| Tipping system | Hydraulic tipping hopper | |
| Steering Gear system | Hydraulic steering | |
| Wheel base | 2000 | |
| Wheel tread | 1470 | |
| Electric starting | Yes | |
| Engine | model | F3L912 / NB485 optional |
| type | Air cooling/water cooling | |
| 12 hours rated power | 36kw/2300rpm(912) / 30kw/2600rpm(485) | |
| Overall size(mm) | 3900×1800×1820/2600 | |
| Weight(kg) | 2250 | |
