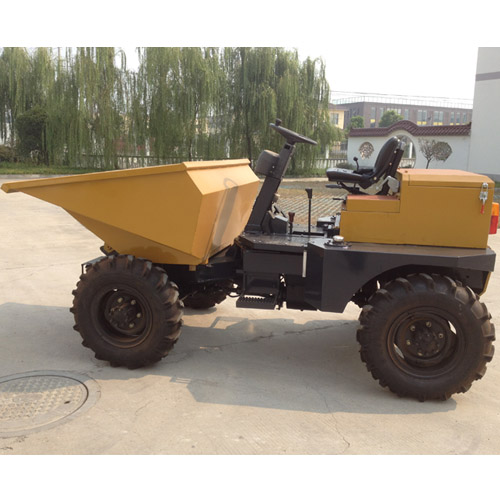

Site Dumper SD15
Site Dumper SD15 -13DH
| Model | SD15-13DH | ||
| Payload(kg) | 1500 | ||
| Capacity of bucket(m3) | 0.75 | ||
| Drive type | 4×4 | ||
| Max.speed(km/h) | 22 | ||
| Grade ability(%) | 21 | ||
| Min.turning radius(m) | ≤4 | ||
| Min ground clearance(mm) | ≥230 | ||
| Tyres | front wheel(mm) | 7.50-16 | |
| rear wheel(mm) | 7.50-16 | ||
| Clutch | Constant-contact,single-disc,dry clutch | ||
| Gear box | Slective-gear transmission,with four forward speeds and one reverse speed | ||
| Tipping system | Hydraulic tipping hopper | ||
| Steering Gear system | Hydraulic steering | ||
| Wheel base | 1900 | ||
| Wheel tread | 1340 | ||
| Electric starting | Yes | ||
| Engine | model | Yanmar CY1105 Water Cooling Diesel Made in China Factory by Japan Yanmar Company | |
| type |
Horizontal single-cylinder four-stroke, radiator water-cooled |
||
| 12 hours rated power | 13.2kw/2000rpm | ||
| Overall size(mm) | 3300×1550×1750 | ||
| Weight(kg) | 1500 | ||
