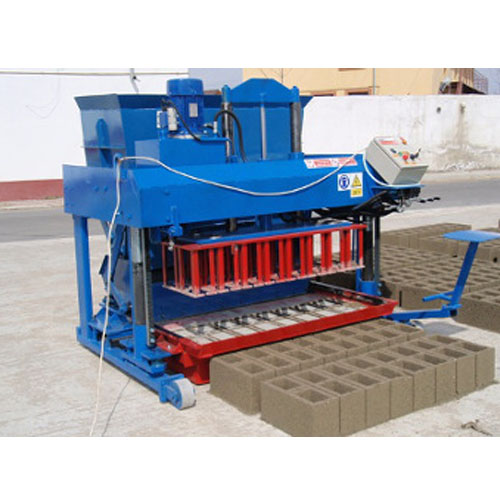

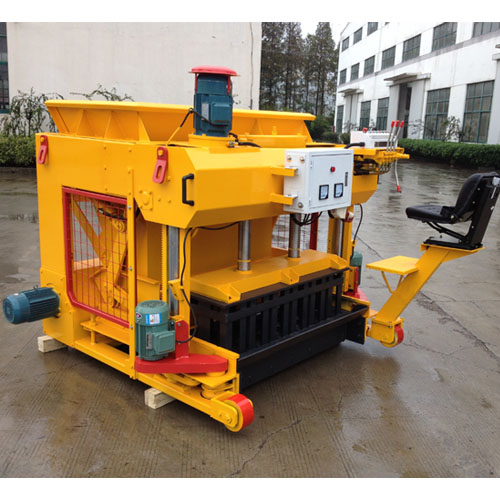

EBM5-10E Concrete Block Moulding Machine

Description

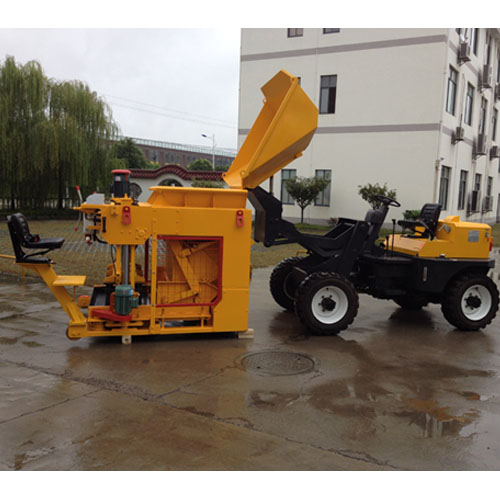

EBM5-10E mobile brick machine is an egg laying type hydraulic operated concrete block making machine developed by our company based on foreign advanced technology and process, which has great advantage as follow.
1. Advanced Technology: The machine adopts several new technique, such as box excitation, hydraulic discharge, omnidirectional automatically movement.
2. High quality: the whole machine is made of high quality steel to maintain a longer life. The hydraulic system of the concrete block moulding machine adopts high-quality components to ensure its safe operation and durability.

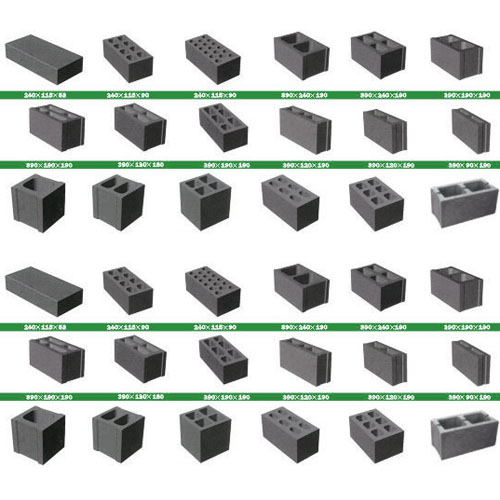

3. Any type of concrete blocks can be produced with consistent quality.

Features of Concrete Block Moulding Machine

1. Independent walking forward and steering system
2. Custom-oriented second system to ensure the synchronization of the mold
3. All electrical parts use Siemens and Schneider Electric
4. No need to use pallet
5. 6 blocks each mould

Main Specifications

Model: EBM5-10E	Total Power: 10.4kw
Per Stroke No: 5pcs/9inch. 6pcs/8inch. 8pcs/6inch. 11pcs/4inch.
Capacity 8 Hours: 3200pcs/9inch. 3840pcs/8inch. 5120pcs/6inch. 7040pcs/4inch.
Cycle: 30s	Hopper Volume: 0.6 m³
Speed: 14.2m/min	Step Distance: 0.65 m
Overall Size: 1973×2224×1825 mm	Total Weight: 2400kg
