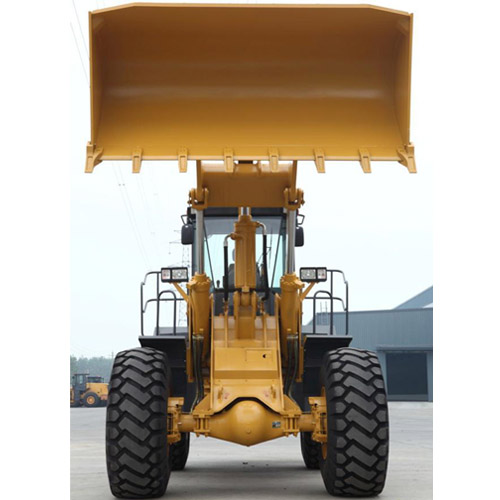

Wheel Loader
Wheel Loader ZL50
| ITEMS | DESCRIPTION | ||
| Model: W156 | 5 ton wheel loader with Air-conditoner | ||
| Main Standard Configuration | |||
| Bucket Capacity | 3.0m³ | ||
| Rated Load | 5000kg | ||
| Travelling Speed | |||
| Forward 1st | 0-11.5km/h | ||
| Forward 2nd | 0-37.5km/h | ||
| Reverse 1st: | 0-17km/h | ||
| Max. Traction | 160kN | ||
| Max. Break Out Force | 175kN | ||
| Min. Turning Radius (outside tires) | 7600mm | ||
| Max. Dumping Height | 3121mm | ||
| Max. Reach | 1057mm | ||
| Total Hydraulic Cycle Time | ≤11.1s | ||
| Full Bucket Lifting Time | 5.7s | ||
| Dimensions (LxWxH) | 7967x2977x3500mm | ||
| Min. Clearance Over Ground | 450mm | ||
| Operating Weight | 16200kg | ||
| Diesel Engine | |||
| Model | WEICHAI STEYR WD10G220E21 | Shanghai SC11CB220G2B1 | CUMMINS 6CTA8.3 |
| Type | Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders | ||
| Rated Output | 162kW | 162kW | 160kW |
| Rated Speed | 2200rpm | ||
| Max. Torque | 860N.m | 860N.m | 908N.m |
| Transmission | |||
| Model | ZL50 | ||
| Rated Input Power | 154kW | ||
| Rated Input Speed | 2200rpm | ||
| Hydraulic Torque Converter Model | Single stage, two phase four components | ||
| Torque Ratio When Zero Speed | 4 | ||
| Transmission Type | two forward and one reverse gears/power shift, planet type | ||
| Mechanical Gear Ratios | |||
| Gear I | 2.4346 | ||
| Gear II | 0.6532 | ||
| Reverse | 1.7814 | ||
| I.O. Gear Ratio Of P.T.O. | |||
| P.T.O. 1 | 1.00 | ||
| P.T.O. 2 | 1.167 | ||
| Hydraulic Oil Pressure: | 1.10-1.40MPa | ||
| Inlet Oil Pressure Of Torque Convertor | 0.30-0.45MPa | ||
| Outlet Oil Pressure Of Torque Convertor | 0.20-0.30MPa | ||
| Lubricating Oil Pressure | 0.10-0.20MPa | ||
| Max. Permissible Temp & Outlet Of Torque Convertor | 120℃ | ||

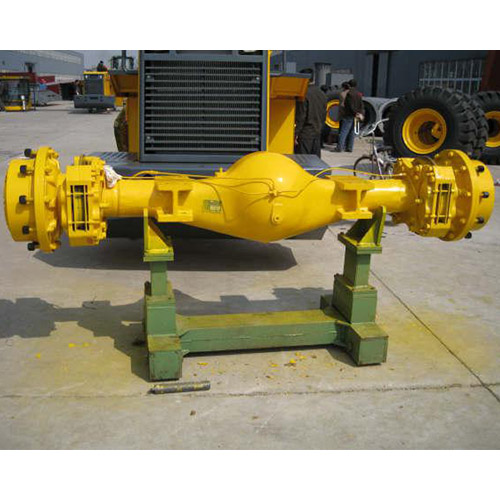

| Transaxle & Tire | |||
| Transaxle Type | self-made by Meritor technology | ||
| Drive System | 4 wheel drive | ||
| Drive Ratio | 22.85 | ||
| Rear Axle Oscillation | Center oscillation | ||
| Oscillating Angle Of Rear Axle | 13° | ||
| Carrier Assembly ReductionRatio | 4.625 | ||
| Wheel End Reduction Assembly Reduction Ratio | 4.94 | ||
| Tire | 23.5-25 | ||
| Pressure Of Tire | 0.28-0.32MPa | ||
| Working Hydraulic System | |||
| Working Pump Type | Gear Pump | ||
| System Working Pressure | 17 MPa | ||
| Working Pump Max. Flow Rate | 328 l/min | ||
| Lifting Cylinder Bore x Stroke | 165x757mm | ||
| Tilting Cylinder Bore x Stroke | 200x540mm | ||
| Steering System | |||
| Type | Articulation, full hydraulic power steering system with flow-amplified system | ||
| Steering Pump Type | gear pump (Model: CBGj2080) | ||
| Max. Flow Rate | 43L (1920r/min) | ||
| Max. Working Pressure | 12MPa | ||
| Steering Cylinder Bore x Stroke | 100x342mm | ||
| Max. Steering Angle | 35° | ||
| Brake System | |||
| Type | Air over hydraulic disc on four wheels brakes | ||
| Drive Brake System Pressure | 0.71-0.784MPa | ||
| Parking Brake | inner expanding shoe brake, air cylinder and spring energy reverse, applied via a switch on the control stand panel | ||
| Oil Injection Capacity | |||
| Fuel Tank | 300L | ||
| Engine Oil | 30L | ||
| Transmission | 45L | ||
| Hydraulic Oil Tank | 200L | ||
| Transaxle | 30L | ||
