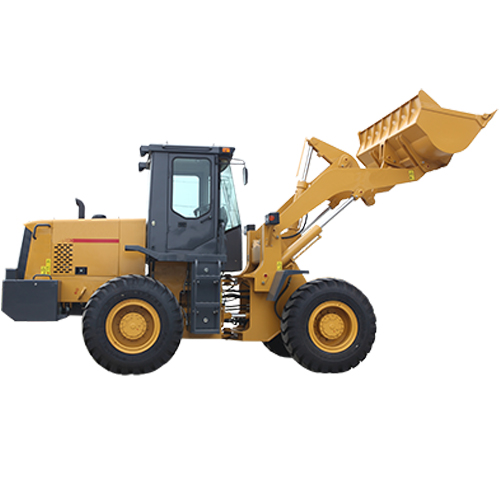

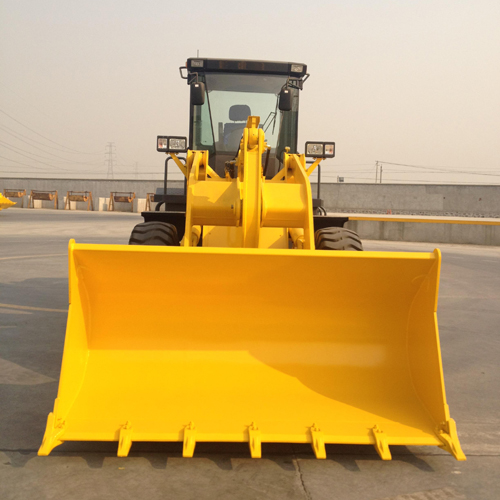

Wheel Loader
Wheel Loader ZL30
| ITEMS | DESCRIPTION | |
| Model: W136II | 3 ton wheel loader with A/C | |
| Main Standard Configuration | ||
| Bucket Capacity | 1.8m³ | |
| Rated Load | 3200kg | |
| Travelling Speed | ||
| Forward 1st | 0-12km/h | |
| Forward 2nd | 0-40km/h | |
| Reverse 1st: | 0-16km/h | |
| Max.Traction | 100kN | |
| Max.Break Out Force | 100kN | |
| Min. Turning Radius (outside tires) | 6005mm | |
| Max. Dumping Height | 3060mm | |
| Max. Reach | 1020mm | |
| Total Hydraulic Cycle Time | ≤10.3s | |
| Full Bucket Lifting Time | ≤5.6s | |
| Wheel Base | 2750mm | |
| Tread Width | 1800mm | |
| Dimensions (LxWxH) | 6950x2245x3228mm | |
| Min. Clearance Over Ground | 360mm | |
| Operating Weight | 10500kg | |
| Diesel Engine | ||
| Model | Deutz WP6G125E22 | Cummins 6BT5.9-C130 |
| Type | Direct injection, water cooling, 4 strokes, | |
| Rated Output | 92kW | 97kW |
| Rated Speed | 2200rpm | |
| Max. Torque | 500N.m | 560N.m |
| Transmission | ||
| Brand: | ZL30 | |
| Rated Input Speed: | 2200rpm | |
| Transmission Type | two forward and one reverse gears/power shift, planet type | |
| Mechanical Gear Ratios | ||
| Gear I | 2.576 | |
| Gear II | 0.691 | |
| Reverse | 1.8846 | |
| Hydraulic Oil Pressure | 1.10-1.40MPa | |
| Inlet Oil Pressure Of Torque Convertor | 0.33-0.5MPa | |
| Outlet Oil Pressure Of Torque Convertor | 0.1-0.20MPa | |
| Lubricating Oil Pressure | 0.10-0.20MPa | |
| Max. Permissible Temp & Outlet Of Torque Convertor | 120℃ | |
| Transaxle & Tire | ||
| Drive System | 4 wheel drive | |
| Rear Axle Oscillation | Center oscillation | |
| Oscillating Angle of Rear Axle | 12° | |
| Carrier Assembly Reduction Ratio | 4.375 | |
| Wheel End Reduction Assembly Reduction Ratio | 4.75 | |
| Tire | 17.5-25 | |
| Pressure Of Tire | 0.28-0.32MPa | |
| Working Hydraulic System | ||
| Working Pump Type | Gear Pump | |
| System Working Pressure | 16MPa | |
| Lifting Cylinder Bore x Stroke | 125x816mm | |
| Tilting Cylinder Bore x Stroke | 140x553 mm | |
| Steering System | ||
| Type | full hydraulic power steering system | |
| Steering Pump Type | CBY2050 (reverse) | |
| Max. Working Pressure | 10MPa | |
| Steering Cylinder Bore x Stroke | 80x340mm | |
| Max. Steering Angle | ±36º | |
| Brake System | ||
| Type | Air over hydraulic disc on four wheels brakes | |
| Oil Injection Capacity | ||
| Fuel Tank | 150L | |
| Engine Oil | 15L | |
| Transmission | 27L | |
| Hydraulic Oil Tank | 140L | |
| Transaxle | 30L | |
