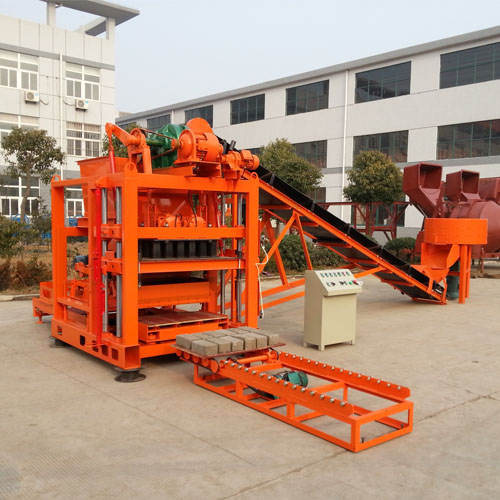

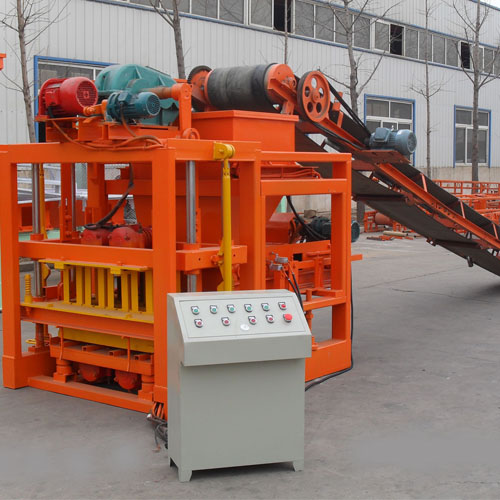

Semi-Automatic Block Making Machine QTJ4-26

Description

QTJ4-26C concrete block making machine is one kind of semi automatic block making machine, which is developed on the basis of small and medium model. The position-setting of the mould and the discharge head are more accurate. The down-mould adopts the vertical, directional vibrating device while the up-mould uses the pressure vibrating. So the blocks made by this block making machine are even, high in density and strength. Also the automatic material distributing system greatly increases the productivity.

Application

The semi-automatic block making machine, by application of fly ash and other industrial waste, can produce color cart road bricks, lawn bricks, cavity bricks, perforated cellular brick, kerbed bricks, tree well bricks and water conservancy revetment bricks, which are widely used in the construction of municipal works, buildings, garden sand roads and its productivity is very high.

Advantages of Block Making Machine

1. Cycle: 25-30s
2. Electrical sources: 380V/50Hz
3. Shift Capacity: 80
4. The products made by them can be piled up (3-5layers immediately after they are shaped.)
5. Topmac is an ISO 9001 accredited block making machine manufacturer in China.

Parameter

Overall Size	3000(L)×1600(W)×2500(H)mm
Cycle	20-26Seconds
Carriage Size	850(L)×550(W)×25(H)mm
Vibration Frequency	4000-4800r/m
Vibration Force	22KN
Rated power	11.75Kw

The mould sheet and the carrier

Mould NO.		Block size and production	Block photo	Carrier photo
1	Hollow block mould	400mm×200mm×200mm 4 pieces/mould 3800 pcs/8h
2	Hollow block mould	400mm×150mm×200mm 5 pieces/mould 5600 pcs/8h
3	Standard block mould	all kinds of standard blocks

Remark:

1. We can provide the mould according to the demand within the production capacity of the machine.
2. The height of the cement hollow block should be within 200mm
3. The carrier size is different from one model to another model.
4. One machine equips with one free mould

Semi-automatic block making machine QTJ4-26, combined with JQ 350 mixer or JQ 500 mixer, constitutes a production line.

introduction of JQ 350 mixer
Overall Size	1200(L)×1200(W)×1300(H)mm
The material capacity	500L
product capacity	φ1200×500mm
Productivity	10-14m3/hr
Rated power	5.5kw
Total mass	380kg
introduction of JQ 500 mixer
For the area without power supply, this machine can be equipped with a generator of5.5KW (for which our company can help you to buy a suitable one)
