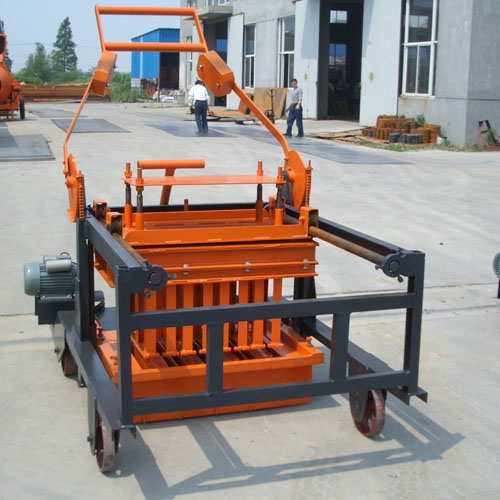

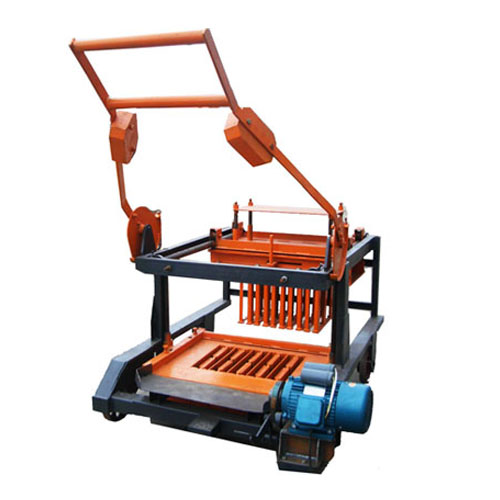

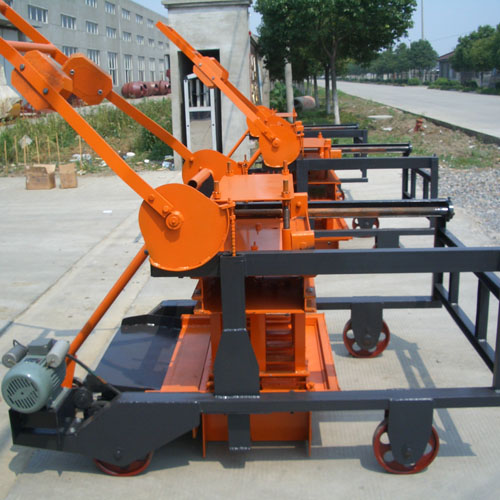

EBM03 Concrete Block Moulding Machine

EBM03 Concrete Block Moulding Machine

Description

Egg laying block moulding machine is a moving block machine with high quality with the characteristic of electricity saving and less labor costs. The machine is especially suitable for small factories or families.

Advantages of Concrete Block Moulding Machine

1. Do not use the clay as raw material to avoid destroying the field.
2. Making use of three industrial wastes to change wastes into valuables.
3. Not using fire to bake blocks and not building kiln to save energy source.
4. No waste gases to pollute the environment.
5. Simple production process.
6. Low investment and high return. Customers can profit in half a year after investing.
7. The block can be produced all year round.
8. Technical criteria are better than those of red brick and green brick

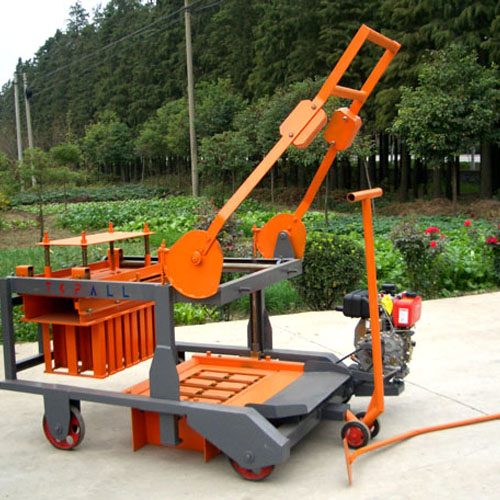

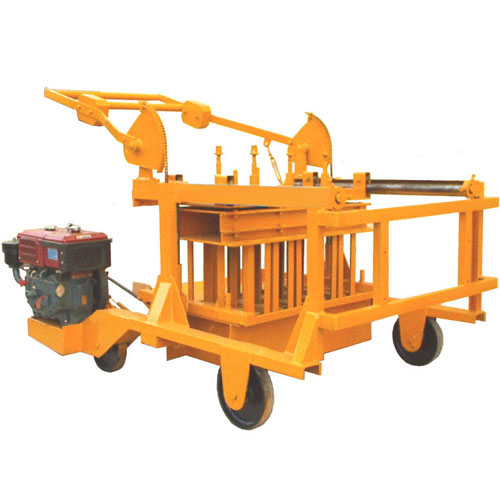

9. Diesel engine driver without pallet

Egg Laying Block Moulding Machine Daily Production: 3500~4000(8 hours)

Size of Moulds	10×20×40: 7 Moulds Per Press=3500 block per day(8 hours)
	15×20×40: 5 Moulds Per Press=3500 block per day(8 hours)
	20×20×40: 4 Moulds Per Press=3500 block per day(8 hours)

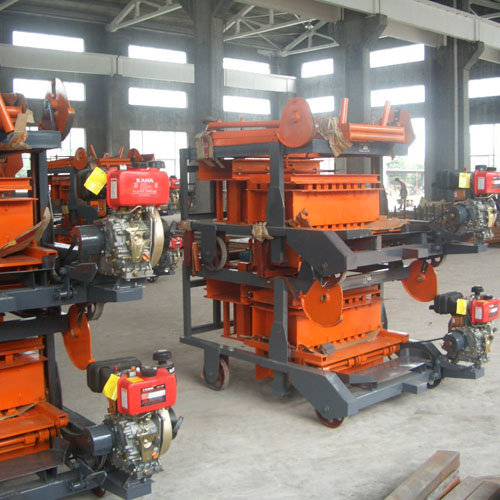

Scene Drawing

Main Specifications of Concrete Block Moulding Machine

Model		EBM03-6D	EBM03-4E
Type		Egg-laying	Egg-laying
Rated time for per cycle (s)		30	30
Size of block pallet (mm)		/	/
Power source		KM178F diesel engine	single phase 220v 3 phase 380v
Total power (kw)		6	4
Total weight (kg)		810	810
Overall size(mm)		2420×1320×1650	2420×1320×1650

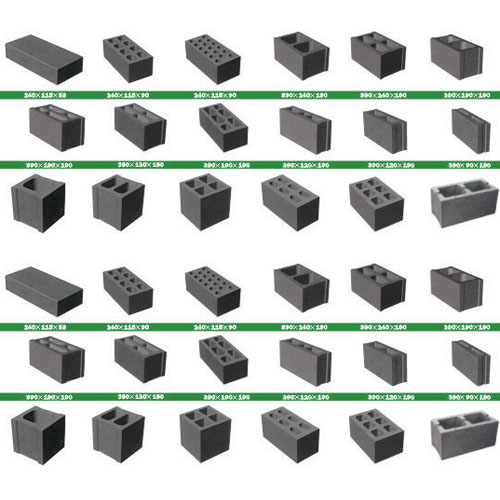

Capacity per hour (pcs.)	400×200×200 (hollow)	100	100
	240×115×90 (hollow)	180	180
	240×115×53 (solid)	/	/
