Wheel Loader

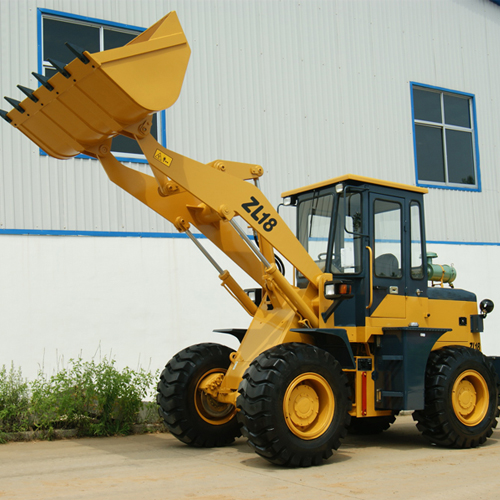

Wheel Loader ZL18
| TECHNICAL DATA | UNITS | 参数值 |
| Rated capacity for bucket | m3 | 0.9 |
| Rated loading | Kg | 1500 |
| Break out force | kN | 48 |
| Maximum tractive effort | kN | 33 |
| Tipping load | kN | 30 |
| Travel speed | km/h | |
| Travel speed in forward 1st | km/h | 0-10 |
| Travel speed in forward 2nd | km/h | 0-25 |
| Travel speed in forward 1st | km/h | 0-10 |
| Travel speed in forward 2nd | km/h | 0-25 |
| Dump height | mm | 2460(2900) |
| Reach fully raised | mm | 900 |
| Dump angle | ° | 45 |
| Reach fully raised | ° | 52 |
| Raising time for bucket | s | 5.2 |
| Lowering time for bucket | s | 3.4 |
| Engine model | ZH4100G1-3 | |
| Rated power | kw | 45 |
| Engine rated revolutions per minute | r/min | 2400 |
| Maximum articulations angle | ° | 左右35 |
| Maximum climbing capacity | % | 60 |
| Minimum turning radius,with bucket in carry position | mm | 4700 |
| Operating mass | Kg | 5100 |
| Overall dimension (L×W×H) | mm |
4830×1950×2715
|
| (5415×1950×2715) |
