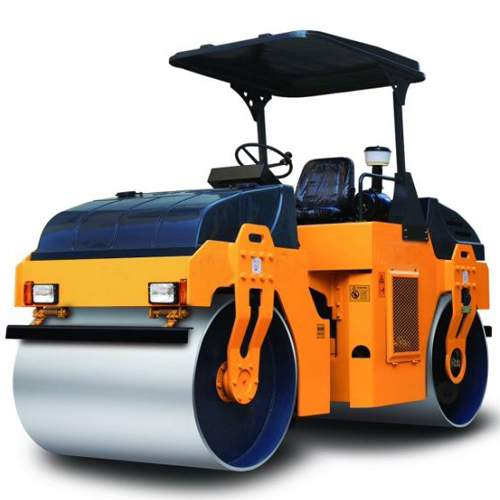

Tandem Vibratory Roller

Main Specifications

Operating weight(kg) 6000
Diameter of vibration drum(mm) 950
Rolling width(mm) 1320
Centrifugal force(kN) 60
Theoratical amplitude of vibration(mm) 0.62
Vibration frequency(Hz) 46
Engine model 4L68
Rater power(Kw/r/min) 40/2600
Operating weight(kg) 6100
Diameter of vibration drum(mm) 1320
Centrifugal moment(KN.M) 20.6
Theoretical amplitude of oscillation(mm) 0.6
Oscillation frequency(Hz) 46
Moving speed Range Ι/П(km/h) 2.5/7.5
Overall dimensions: LWH(mm) 3660×1550×2630
