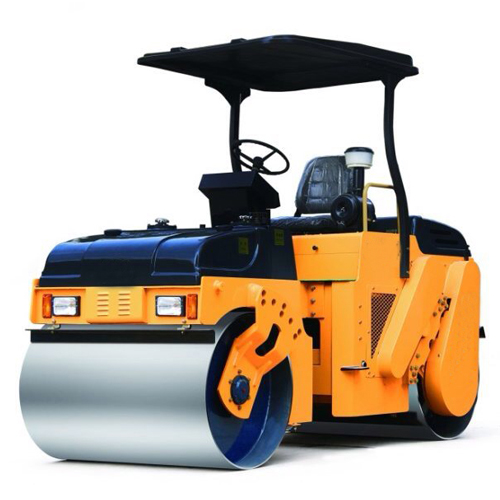

Tandem Vibratory Roller
Main Specifications
| Tandem Vibratory Roller TVR40 | |
| Operating weight(kg) | 4000 |
| Diameter of vibration drum(mm) | 860 |
| Rolling width(mm) | 1300 |
| Centrifugal force(kN) | 40 |
| Theoratical amplitude of vibration(mm) | 0.5 |
| Vibration frequency(Hz) | 50 |
| Engine model(CHANGCHAI) | ZN490Q |
| Rater power(Kw/r/min) | 33.5/2600 |
| VR40A oscillation vibratory compactor | |
| Operating weight(kg) | 4100 |
| Rolling width(mm) | 1300 |
| Centrifugal moment(KN/M) | 13 |
| Theoretical amplitude of oscillation(mm) | 0.35 |
| Oscillation frequency(Hz) | 50 |
| Moving speed Range Ι/П(km/h) | 2.5/7.5 |
| Overall dimensions: LWH(mm | 3180×1460×2560 |
