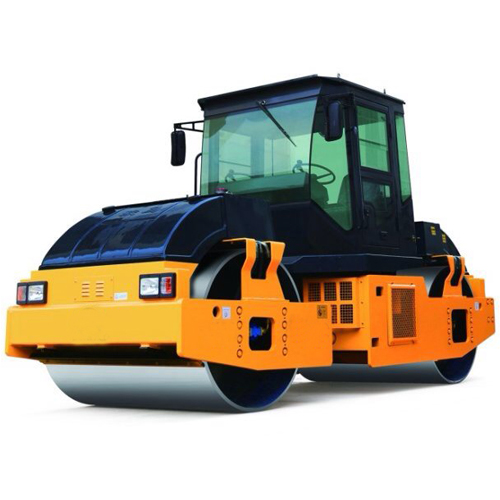

Tandem Vibratory Roller
Main Specifications
| Operating weight(kg) | 12000 |
| Diameter of vibration drum(mm) | 1200 |
| Rolling width(mm) | 1700 |
| Centrifugal force(kN) | 85/120 |
| Vibration/Oscillation frequency(Hz) | 45 |
| Vibration/Oscillation amplitude (mm) | 0.35/0.52 |
| Static linear pressure(N/cm) | 320/380 |
| Centrifugal torque(kN/m) | 41 |
| Vibration/Oscillation amplitude (mm) | 0.65/0.75 |
| Moving speed Range (km/h) | 0-8 |
| Turning radius | ≤6000 |
| Gradeability | ≥20% |
| Engine model | Cummins4BTA3.9-C100 |
| Rater power(kW) | 74 |
| Rated speed(r/min) | 2200 |
| Overall dimensions: LWH(mm) | 4880×1980×2800 |
