Self-Loading Mobile Concrete Mixer

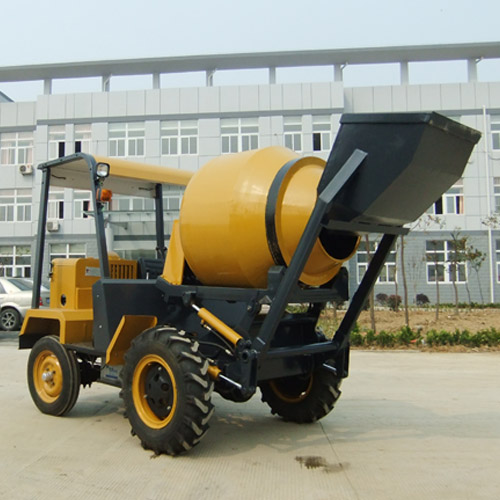

Mobile Concrete Mixer SD680M

Model SD680M
Power Yanmar Water Cooling Diesel 18 hp/ 1 Cylinder
Power Source Electrical start
Wheel System Hydraulic
Clutch Single dry plate
Maximum Gradient 21%
Transmission and driving 3 Forward +1 reverse and 4×2 driving
Drum capacity 680 Liter
Mixing capacity 450 Liter
Capacity Per Hour 9m3
Dimension 2800×1600×2100 mm
Weight 1500 kg
