2 Wheel Drive Site Dumper

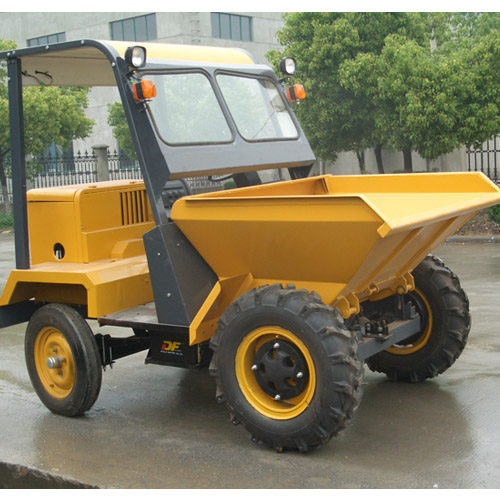

Site Dumper SD10
| Model | SD10-9D | SD10-9DA |
| Picture |
|
|
| Payload | 1000kg | |
| Diesel Engine | Single cylinder, Water-cooling system with radiator | |
| Rated Power | 12 hp/2200 rpm | |
| Water capacity | 317 ltr (11.2 cuf) | |
| Struck capacity | 467 ltr (16.5 cuf) | |
| Heaped capacity | 765 ltr (27 cuf) | |
| Min.Out turning circle Radius | 4 m | |
| Min. Ground Clearance | 200mm | |
| Discharging Height |
|
|
| Tipping System | Mechanic | |
| Engine starting | Manual | Manual and Electric |
| Electric Battery | No | 12 V, 75 amp. |
| Driver awning | No | Yes |
| Road speed | 5.8 ~23 km/h | |
| Reverse speed | 4.7 km/h | |
| Transmission | 3 forward & 1 reverse gear | |
| Chassis | Rigid frame | |
| Driving axle | 4×2 | |
| Clutch | Constant-contact, Single disc, dry clutch | |
| Dimension | 2650×1600×1450mm | 2650×1600×2074mm |

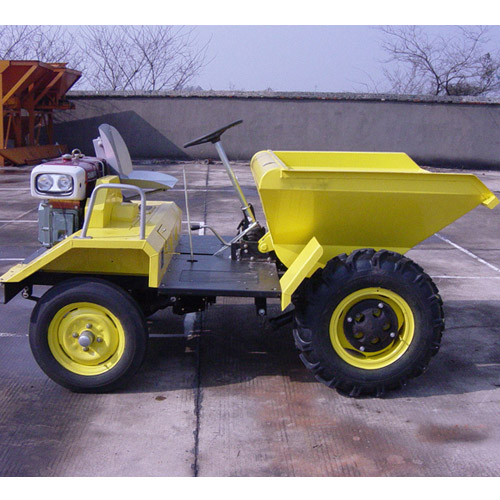

Site Dumper SD10-13DH
| Model | SD10-13DH |
| Picture |
|
| Payload | 1000kg |
| Diesel Engine | Single cylinder, Water-cooling system with radiator |
| Rated Power | 18 hp/2200 rpm |
| Water capacity | 317 ltr (11.2 cuf) |
| Struck capacity | 467 ltr (16.5 cuf) |
| Heaped capacity | 765 ltr (27 cuf) |
| Min.Out turning circle Radius | 4 m |
| Min. Ground Clearance | 200mm |
| Discharging Height | 1650mm |
| Tipping System | Hydraulic |
| Engine starting | Manual and Electric |
| Electric Battery | 12 V, 75 amp. |
| Driver awning | Yes |
| Road speed | 5.8 ~23 km/h |
| Reverse speed | 4.7 km/h |
| Transmission | 4 forward & 1 reverse gear |
| Chassis | Articulated Frame |
| Driving axle | 4×2 |
| Clutch | Constant-contact, Single disc, dry clutch |
| Dimension | 3200×1600×1700mm |
